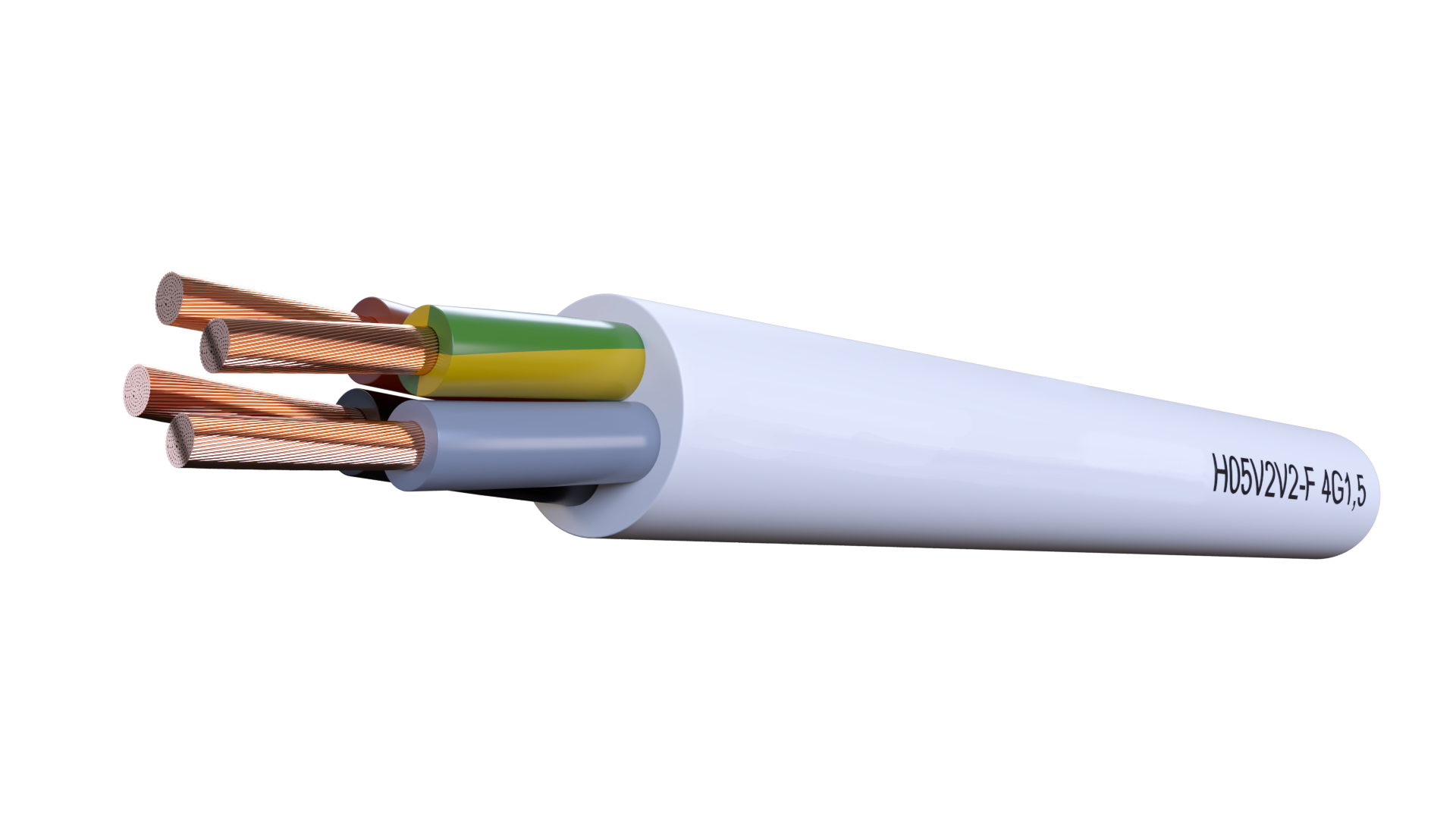

H05V2V2-F 300/500V - PVC Flexible Heat Resistant Cord
Application:
This cable is suitable for connecting electrical equipment indoor. It should be used in dry and humid locations
Construction:
Conductor - Copper : Class 5 fine stranded according to EN 60228
Insulation - Polyvinylchloride (PVC)
Outher sheath - Polyvinylchloride (PVC)
Standards:
Accordance to HD 308 standard
Electrical Performance:
Nominal Voltage: 300 / 500 Volt
Short circuit time max. [sec] 5
Bending radius in motion x diameter 5
Temperature range:
Operating temperature short circuit °C 150°C
Flammability:
Accordance to EN 60332-1-2 - Eca
