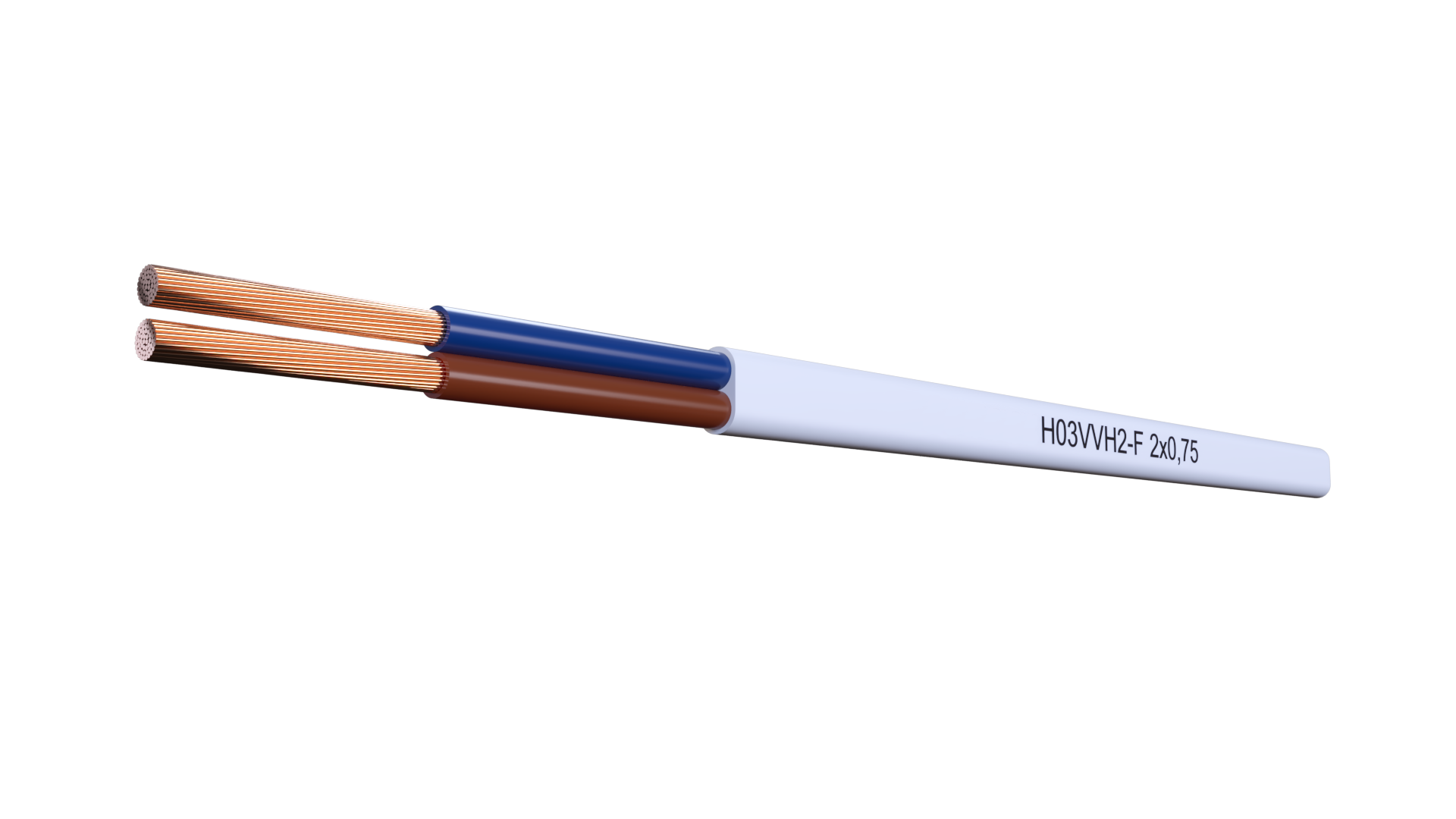

H03VVH2-F 300/300V - PVC Sheathed Wire
Application:
Suitable in dry locations for connections of portable electrical appliances submitted to weak mechanical strength, like radio sets and lighting fittings, but not for heating devices
Construction:
Conductor - Fine-stranded bare copper
Insulation - Polyvinylchloride (PVC)
Outher sheath - Polyvinylchloride (PVC)
Standards:
EN 50525-2-11
HD 21.5 S3 +A1+A2
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)
Electrical Performance:
Nominal Voltage: 300 / 300 Volt
Short circuit time max. [sec] 5
Bending radius: single core x diameter 6
Temperature range:
Operating temperature short circuit °C 150°C
Flammability:
Accordance to EN 60332-1-2 - Eca
