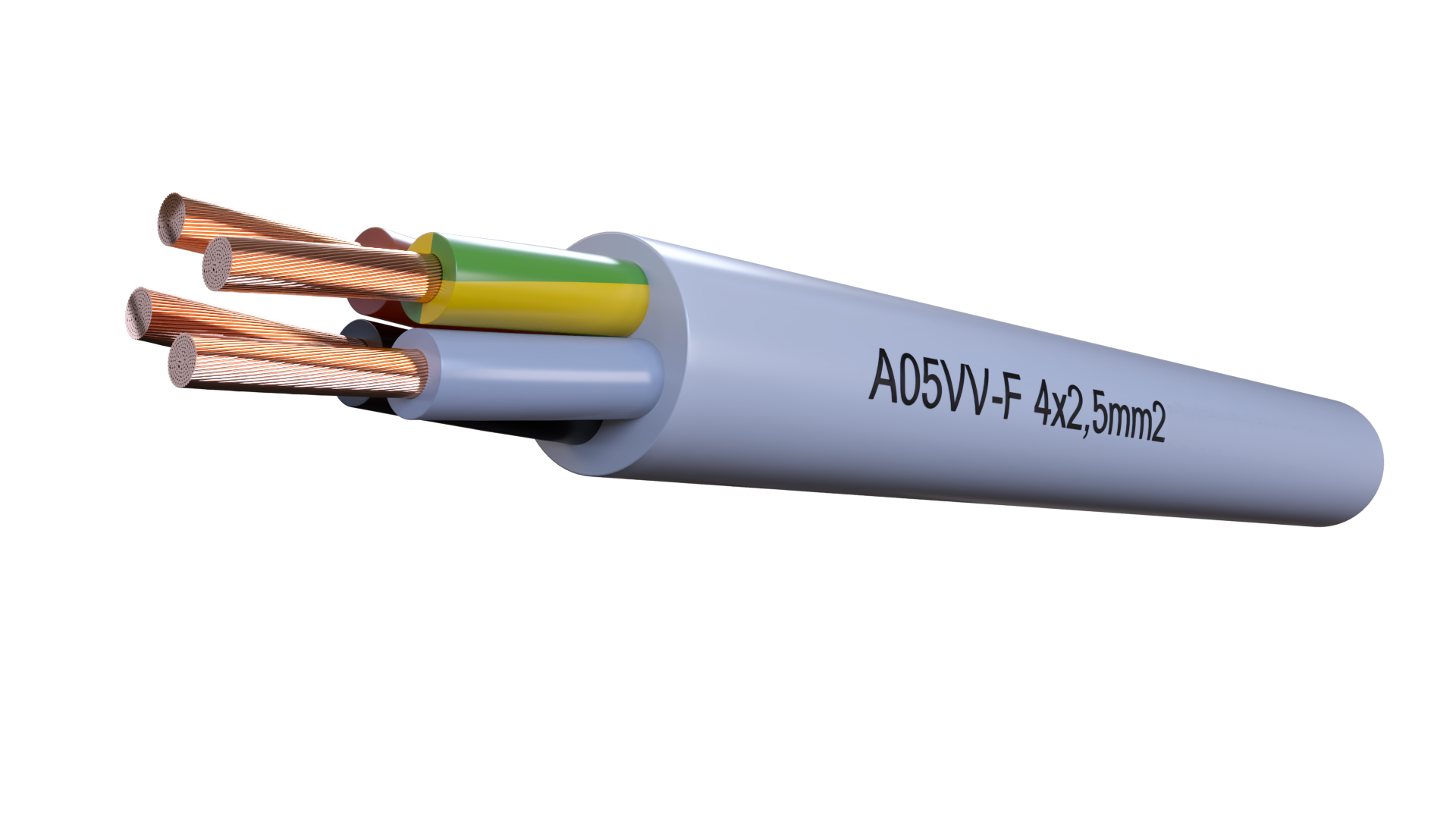

A05VV-F 300/500V & A03VV-F 300/300V - PVC Sheathed Wire
Application:
A05VV-F: Suitable in dry and humid locations for connections of electrical appliances submitted to medium level mechanical strength, like washing machines, refrigerators, etc. Suitable for heating appliances provided that there is no risk of contact with hot parts
A03VV-F: Suitable in dry locations for connections of portable electrical appliances submitted to weak mechanical strength, like radio sets and lighting fittings, but not for heating devices
Construction:
Conductor - Copper: Bunched Class 5 Flexible
Insulation - Polyvinylchloride (PVC)
Outher sheath - Polyvinylchloride (PVC)
Standards:
Electrical Performance:
Nominal voltage: A05VV-F Uo/U [V] 300 / 500 Volt
Nominal voltage: A03VV-F Uo/U [V] 300 / 300 Volt
Short circuit time: max. [sec] 5
Temperature range:
Operating temperature short circuit °C 160°C
Fire classification CPR class:
Accordance to EN 60332-1-2 - Eca
