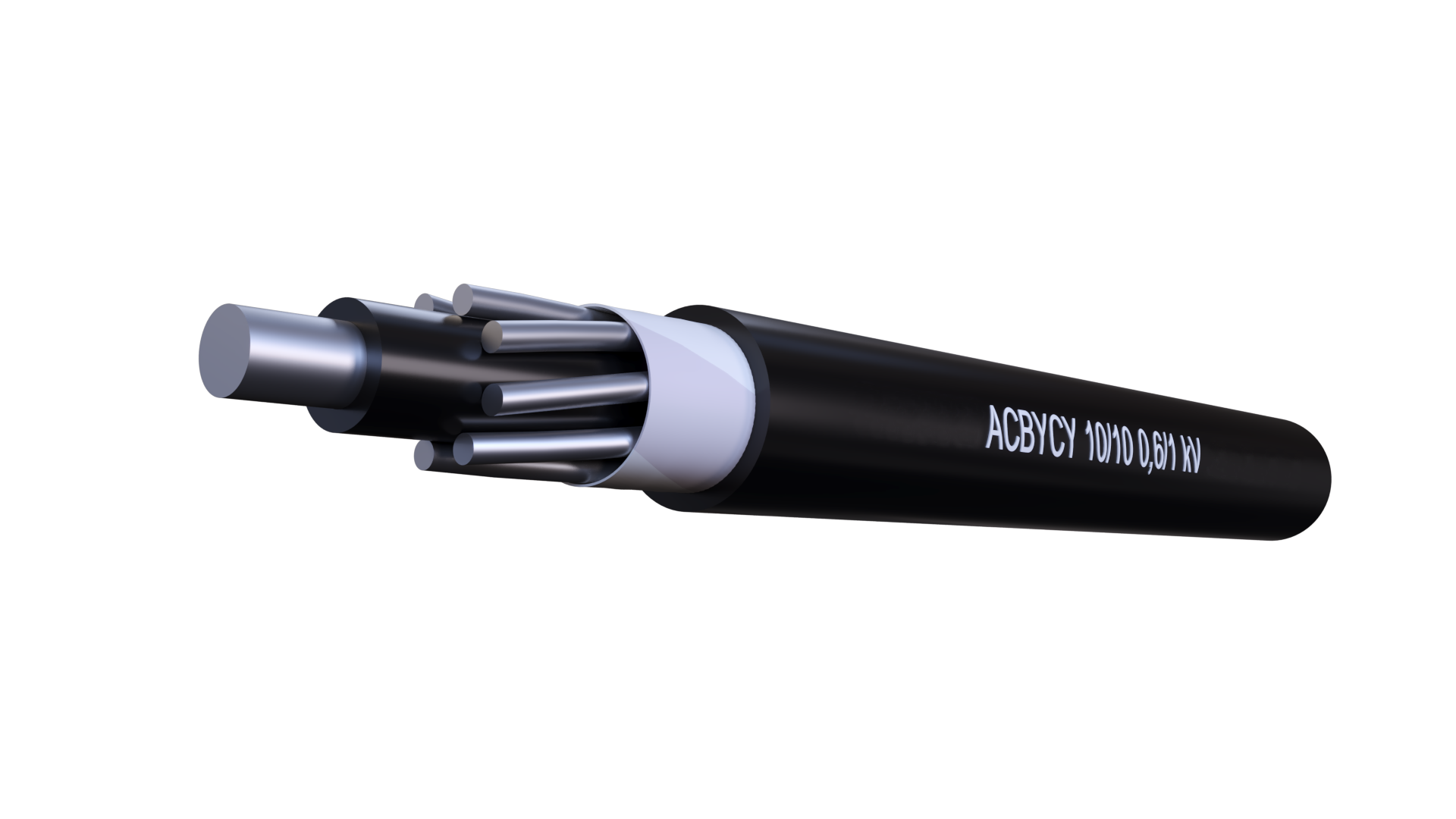

ACBYCY 0.6/1kV - PVC insulated cable with aluminium concentric conductor and PVC sheath
Application:
Monophase connections for Uo/U voltages of 0,6/1kV
Construction:
Conductor - Aluminium conductor RE or RM accoding to SR EN 60228
Insulation - Polyvinylchloride (PVC), Black
Filling - Concentric conductor of aluminium wires
Inner sheath - Polyvinylchloride (PVC)
Outer sheath - Polyvinylchloride (PVC), Black
Standards:
SR EN 60228;
SR CEI 60502
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Bending radius: Single circle x diameter 10
Bending radius: Multi core x diameter 12
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -40°C till +70°C
