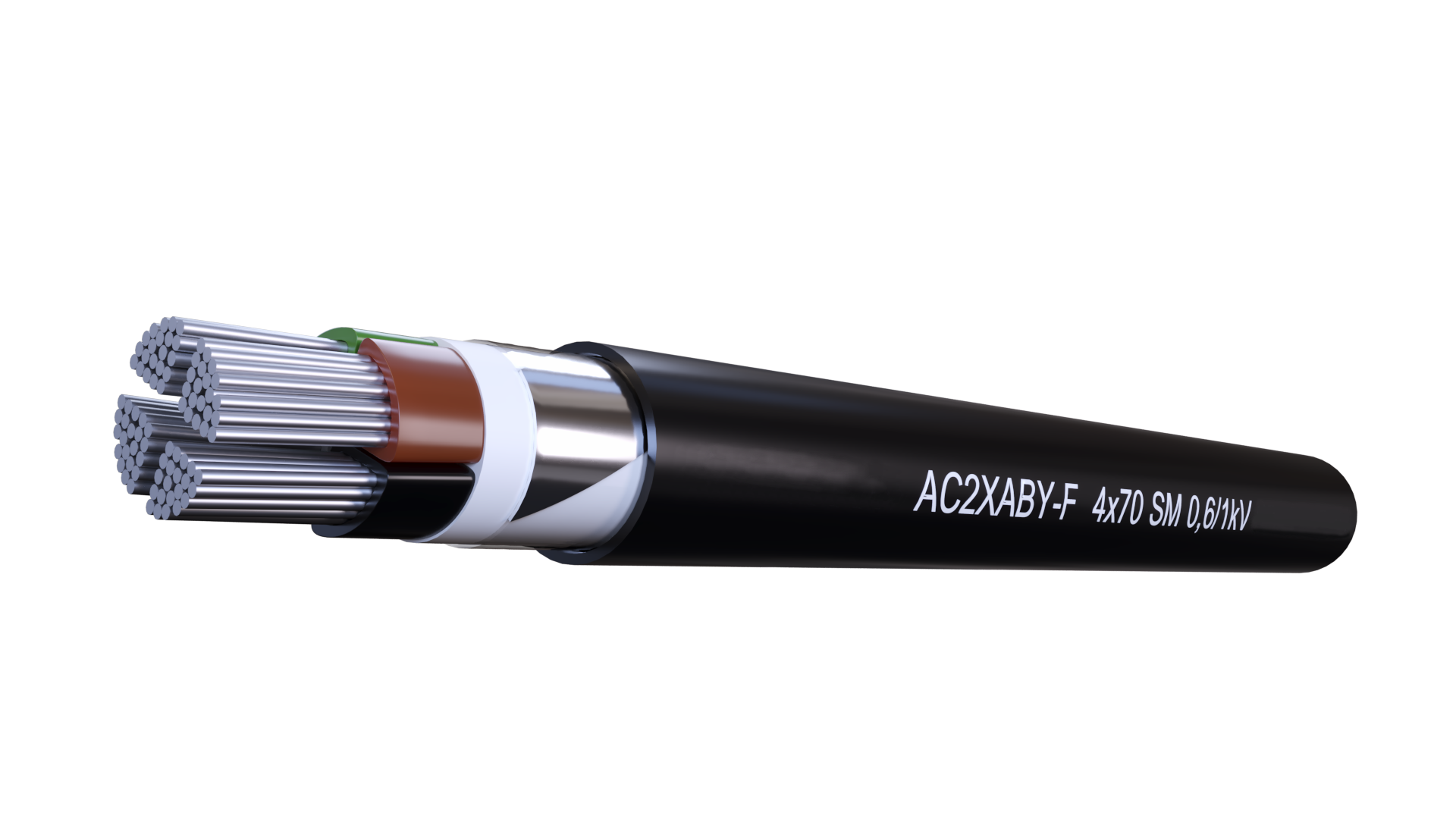

Energy & Infrastructure Products -AC2XABY 0,6/1kV

Application:

Power supply to power stations. The cables must be protected against: corozive chemicals and chemical solvents. UV resistant cables

Construction:

Conductor - Monowire or multi wire copper, aluminium conductors

Insulation - XLPE

Filling - Core covering or taping

Inner sheath - Polyvinylchloride (PVC)

Blank or zinc-plated cold-rolled

Outer sheath - Polyvinylchloride (PVC)

Standards:

SR EN 60228;
SR CEI 60502

File Certification

Electrical Performance:

Nominal Voltage: 600/1000 Volt

Test Voltage: [V]AC 4000

Short circuit time max. [sec] 5

Bending radius: Single circle x diameter 12

Temperature range:

With installation and handling -5°C

Storage -40°C

Max. perm. storage temp.: +90 °C

Operating temperature: max. +250 °C

Flammability:

Eca
