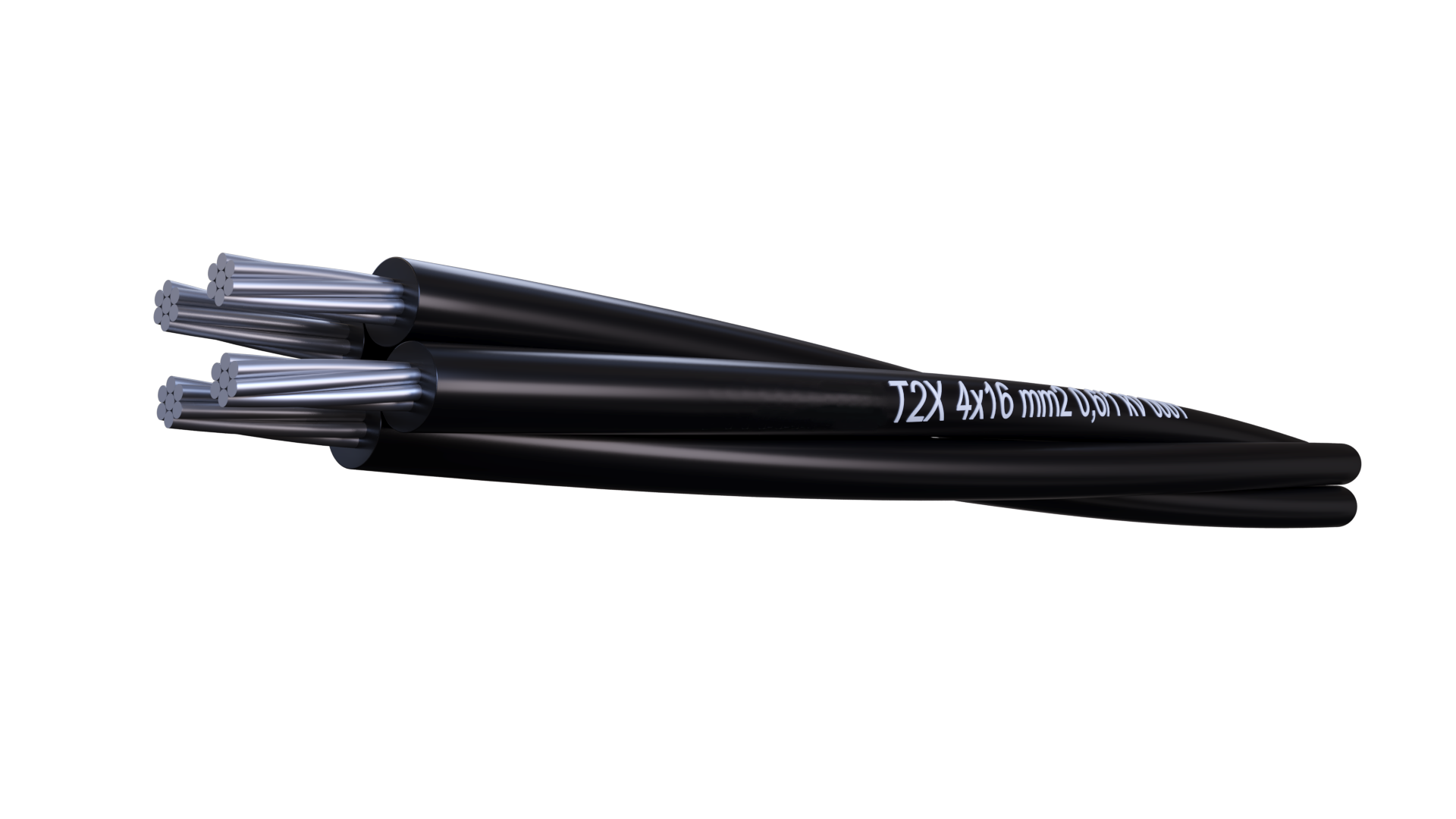

T2X 0.6/1kV - Stranded crosslinked polyethylene – insulated aluminium coductors with or without aluminium alloy carrier
Application:
Power distributions networks with rated voltages up to Uo/U 0,6/1 kV
Construction:
Conductor - Aluminium conductor RE or RM accoding to SR EN 60228
Insulation - Cross-linked polyethylene
Standards:
ÖVE / ÖNORM E8200-626
HD 626 S1
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Short circuit time max. sec 5
Bending radius in motion x diameter 18
Temperature range:
