YKY 0,6/1kV - PVC Insulated Heavy Current Cable
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected

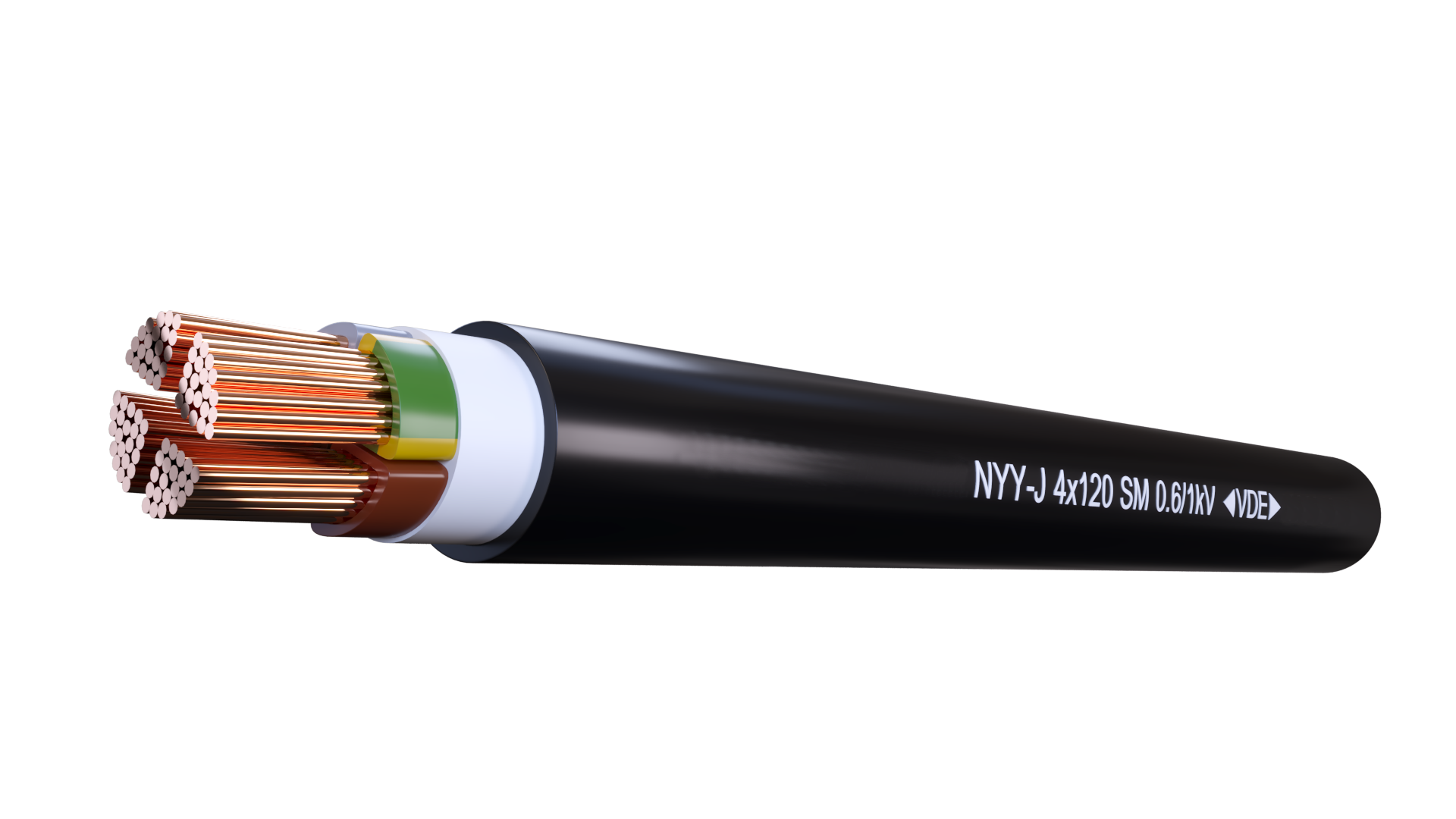

Construction:
Conductor - Copper : solid (RE) or stranded (RM/SM)
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - Core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black UV-resistant
Standards:
OZ: every core is black with figures
JZ: One core green/yellow, other cores are black with figures
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 12
Bending radius: Multi core x diameter 15
Temperature range:
In motion: -5°C till +70°C
Maximum short circuit temperature 160°C <=300mm2
Maximum short circuit temperature 140°C > 300mm
Flammability:
Reaction to fire EN 50575 - Eca
