Application:

In dry, humid and wet locations, cable ducts, outdoors, underground and in water

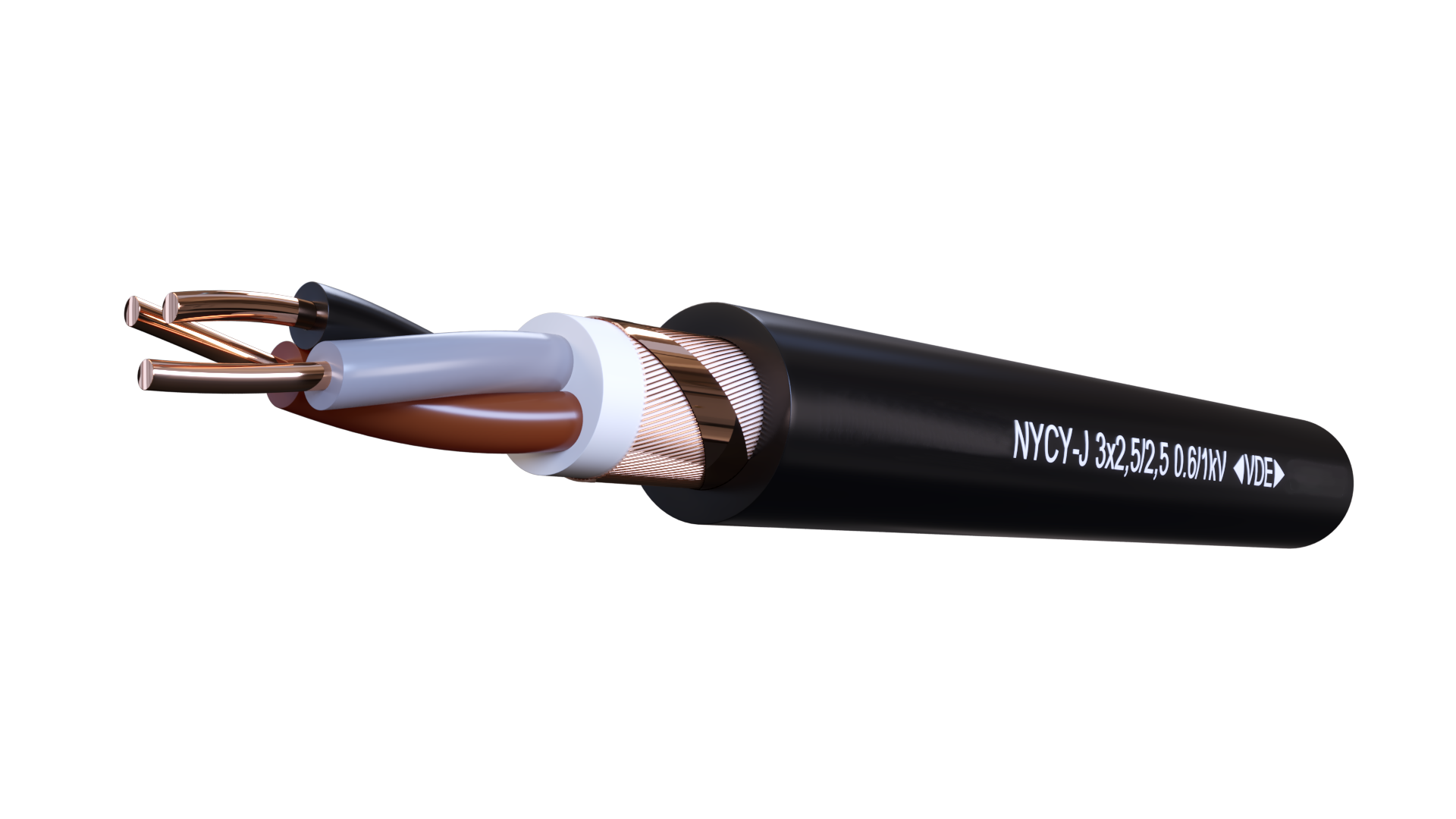

Construction:

Conductor - Copper : solid (RE) or stranded (RM)

Insulation - Core insulation of polyvinylchloride (PVC)

Filling - Core covering or taping

Screening - Concentric conductor of copper wires and copper tape

Outher sheath - Polyvinylchloride (PVC), Black

Standards:

DIN VDE 0276-603:2010-03;
HD 603 S1:1994/A3:2007
DIN VDE 0276-627: 2006-09;
HD 627 S1:1996+A1:2000 +A2:2005

License:

This cable is VDE certified

Core identification:

Accordance to HD 308 S2

JZ: One core green/yellow, other cores are black with figures

OZ: every core is black with figures

File Certification

Electrical Performance:

Nominal Voltage: 600/1000 Volt

Test Voltage: [V]AC 4000

Short circuit time max. [sec] 5

Bending radius: Single circle x diameter 12

Bending radius: Multi core x diameter 15

Temperature range:

In motion: -5°C till +70°C

Fixed: -20°C till +70°C

Operating temperature short circuit 160°C

Flammability:

Reaction to fire EN 60332-1-2 - Eca
