Application:

For fixed installation in building, in free air, in ground and in water

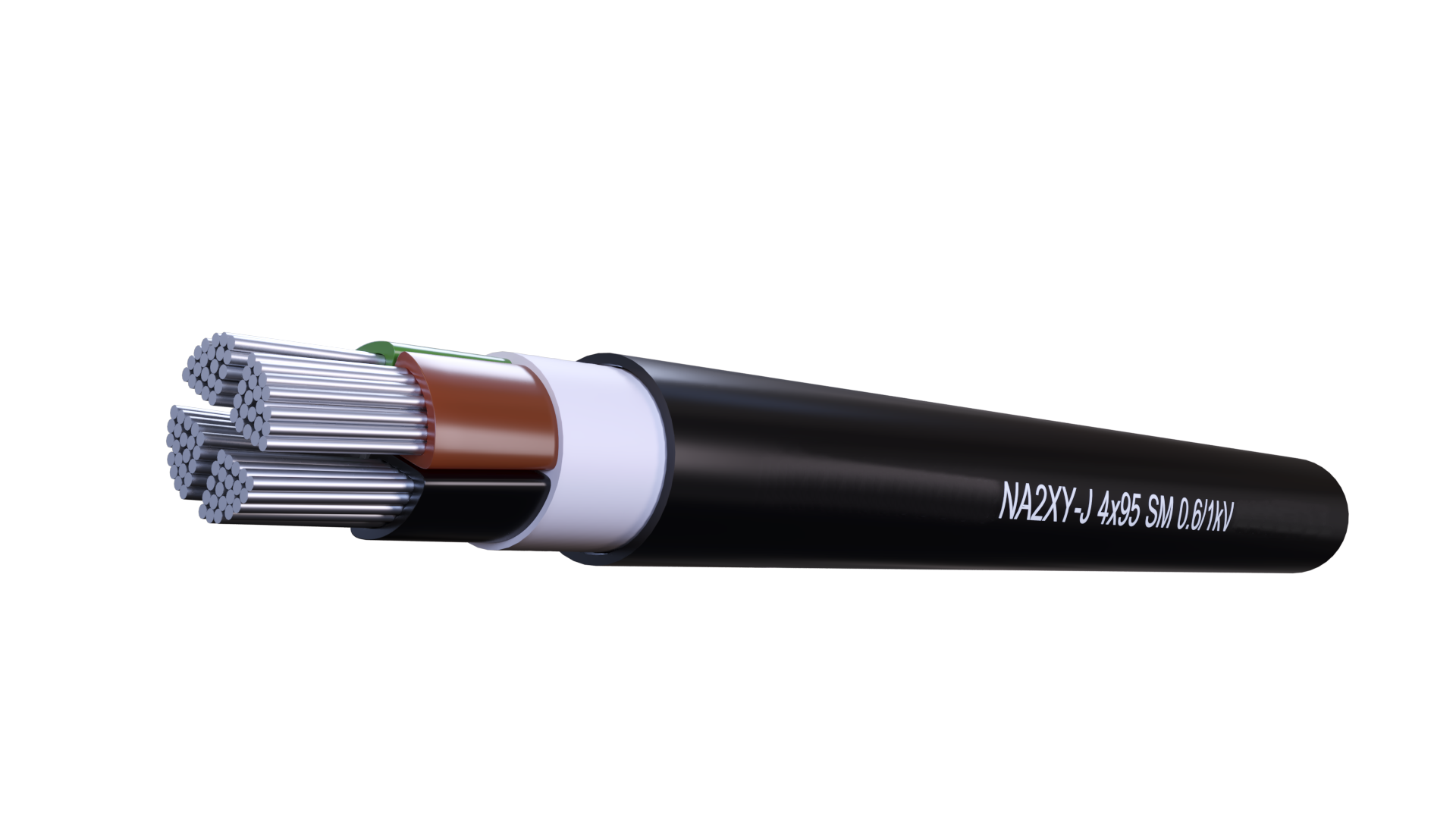

Construction:

Conductor - Round or sector-shaped conductor according to SR EN 60228

Insulation - Crosslinked polyethylene (XLPE) , type DIX 3

Filling - Extruded inner covering

Outher sheath - PVC, DMV 6 type

Standards:

SR HD 603 S1
IEC 6050-1
Construction according to EN 60228

Core identification:

Accordance to HD 308 S2

File Certification

Electrical Performance:

Voltage rating : Uo/U (Um) 0,6/1 (1,2)kV

Test voltage : 4kV

Short circuit time max. [sec] 5

Bending radius: Single circle x diameter 15

Bending radius: Multi core x diameter 12

Temperature range:

Flexed : -5°C till +70°C

Fixed : -35°C till +70°C

Maximum short circuit temperature: 250°C (max 5 seconds)
