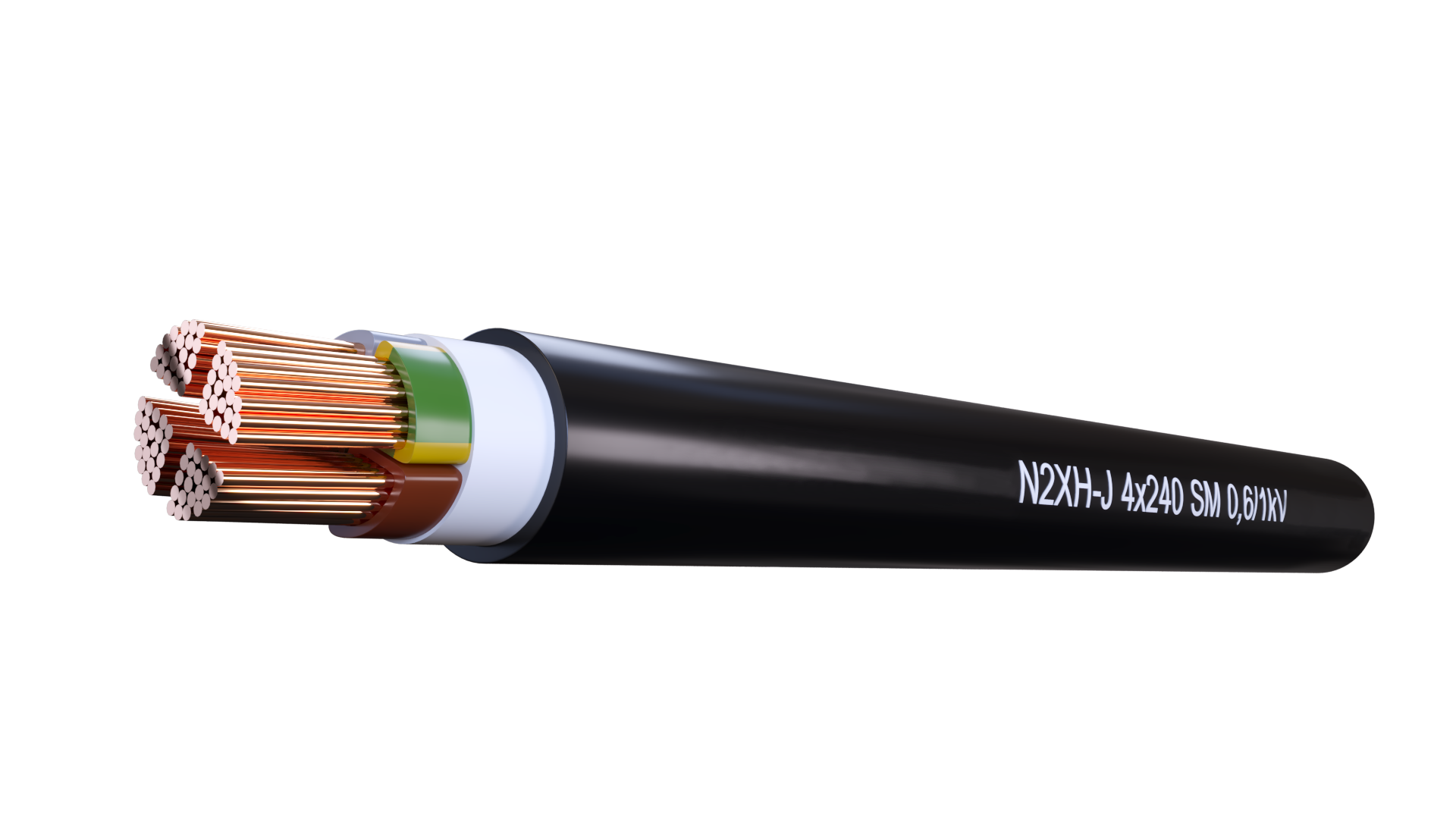

N2XH Halogen-Free Cable with Improved Fire Behaviour
Application:
Safety cables are used in all locations where a high degree of protection against fireand fire-damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground and into the water. This cable conforms to Safety Class II standards
Construction:
Conductor - Copper: solid (RE); Stranded (RM/SM)
Filling - Core covering of a halogen-free compound
Standards:
Electrical Performance:
Nominal Voltage: 0.6/1 kV
Short circuit time max. [sec] 5
Temperature range:
Operating temperature: short circuit 250°C
Fire classification CPR class:
1 core: B2 ca-s1a,d2,a1;
Multicore: Cca-s1a,d2,a1
