H1Z2Z2-K 1.5/1.5kV DC Electric cable for photovoltaic systems
Application:
Cables used in photovoltaic systems for permanent outdoor use. This versatile single conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations

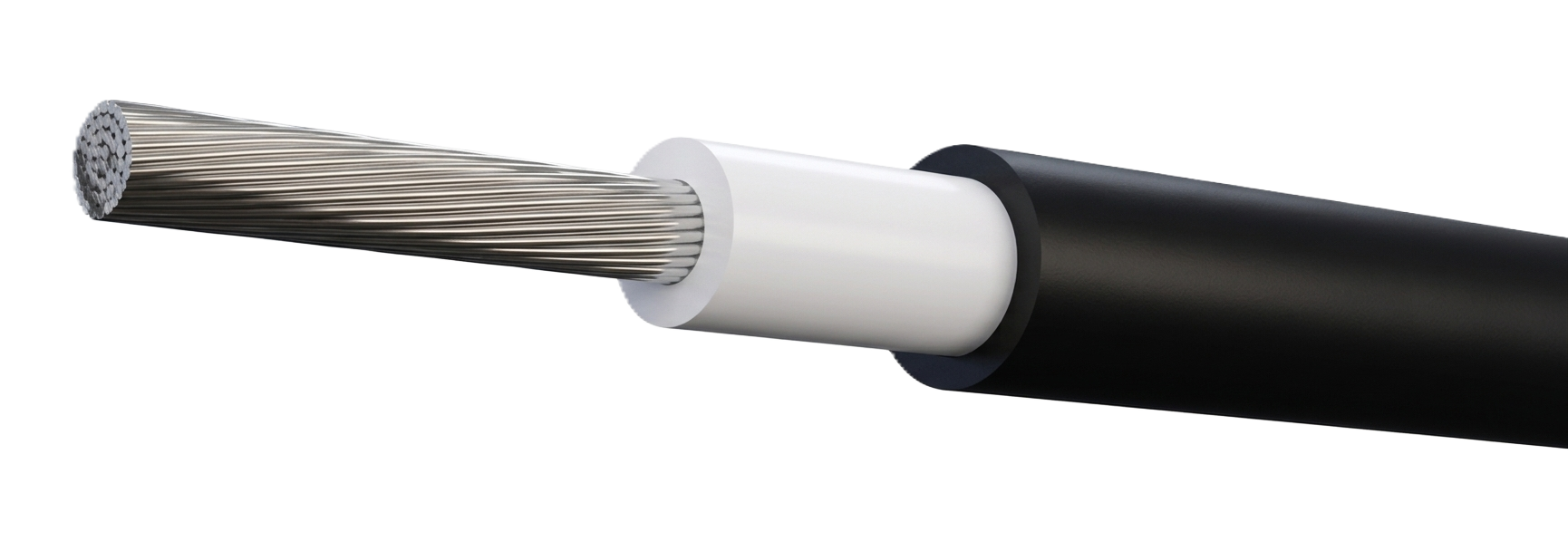

Construction:
Conductor - Flexible tinned copper conductor
Insulation - Core insulation of halogen-free, cross-linked polyethylene
Outer sheath: Halogen-free, cross-linked polyethylene
Standards:
EN 50618:2014
DIN EN 60228 Class 5 (construction)
This cable is EZU certified
Electrical Performance:
Rated Voltage: DC 1.5 / 1.5 kV
Rated Voltage: AC 1.0 / 1.0 kV
Max. perm. operating voltage DC: 1.8 / 1.8 kV
Max. perm. operating voltage AC: 1.2 / 1.2 kV
Nominal voltage: Uo/U 600/1000 Volt
Short circuit time max [sec] 5
Bending radius x diameter 6
Temperature range:
Flammability:
Reaction to fire EN 60332-1-2 Dca
