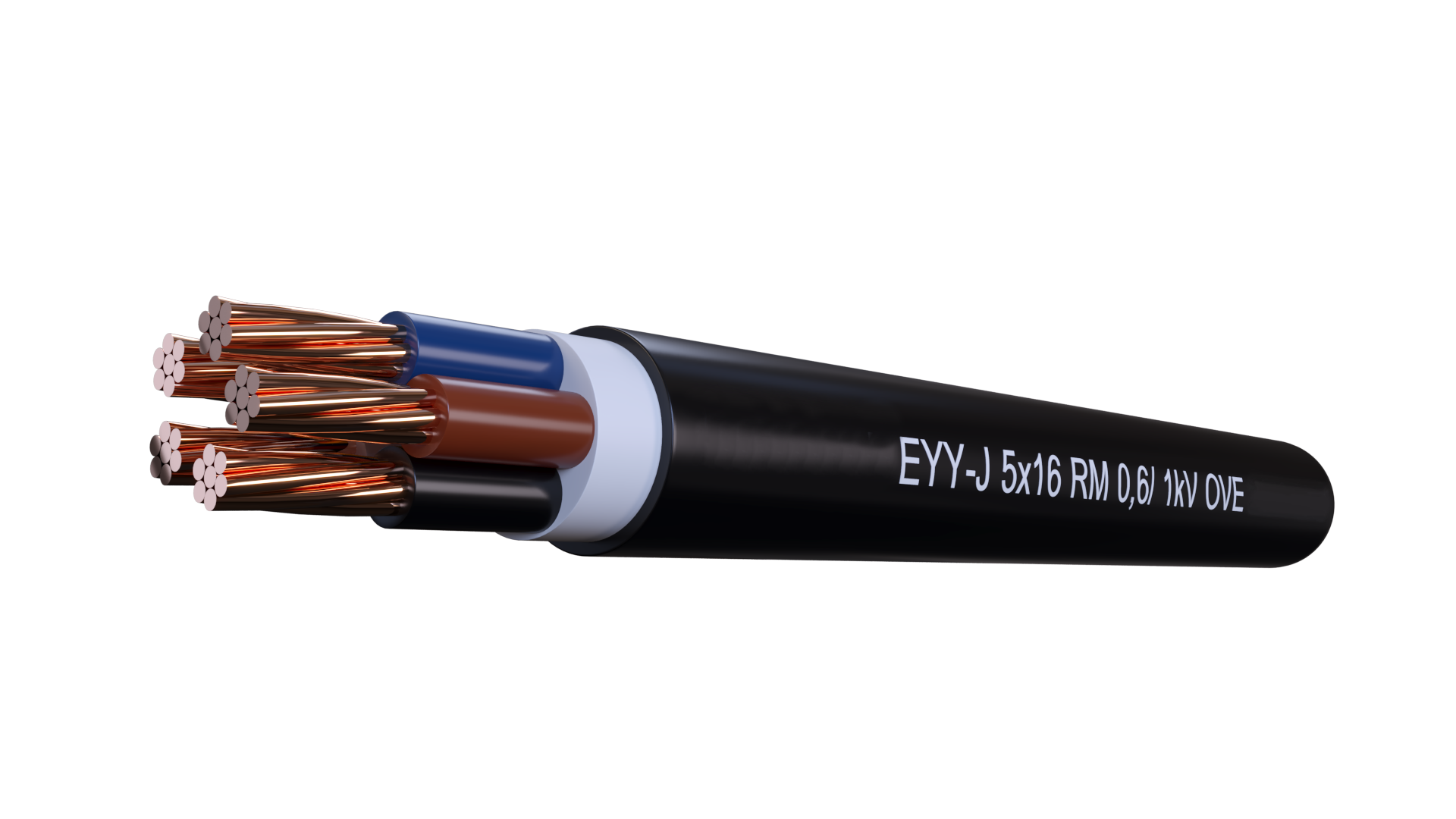

EYY 0,6/1kV - PVC Insulated Heavy Current Cable
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected
Construction:
Conductor - Copper : solid (RE) or stranded (RM/SM) bare copper
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - PVC core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black ,UV-resistant
Standards:
ÖVE-K 603
DIN EN 60228 class 1 and 2 - Construction
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 15
Bending radius: Multi core x diameter 12
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -20°C till +70°C
Operating temperature: short circuit 160°C <=300mm2
Operating temperature: short circuit 140°C > 300mm2
Flammability:
Reaction to fire EN 50575 - Eca
