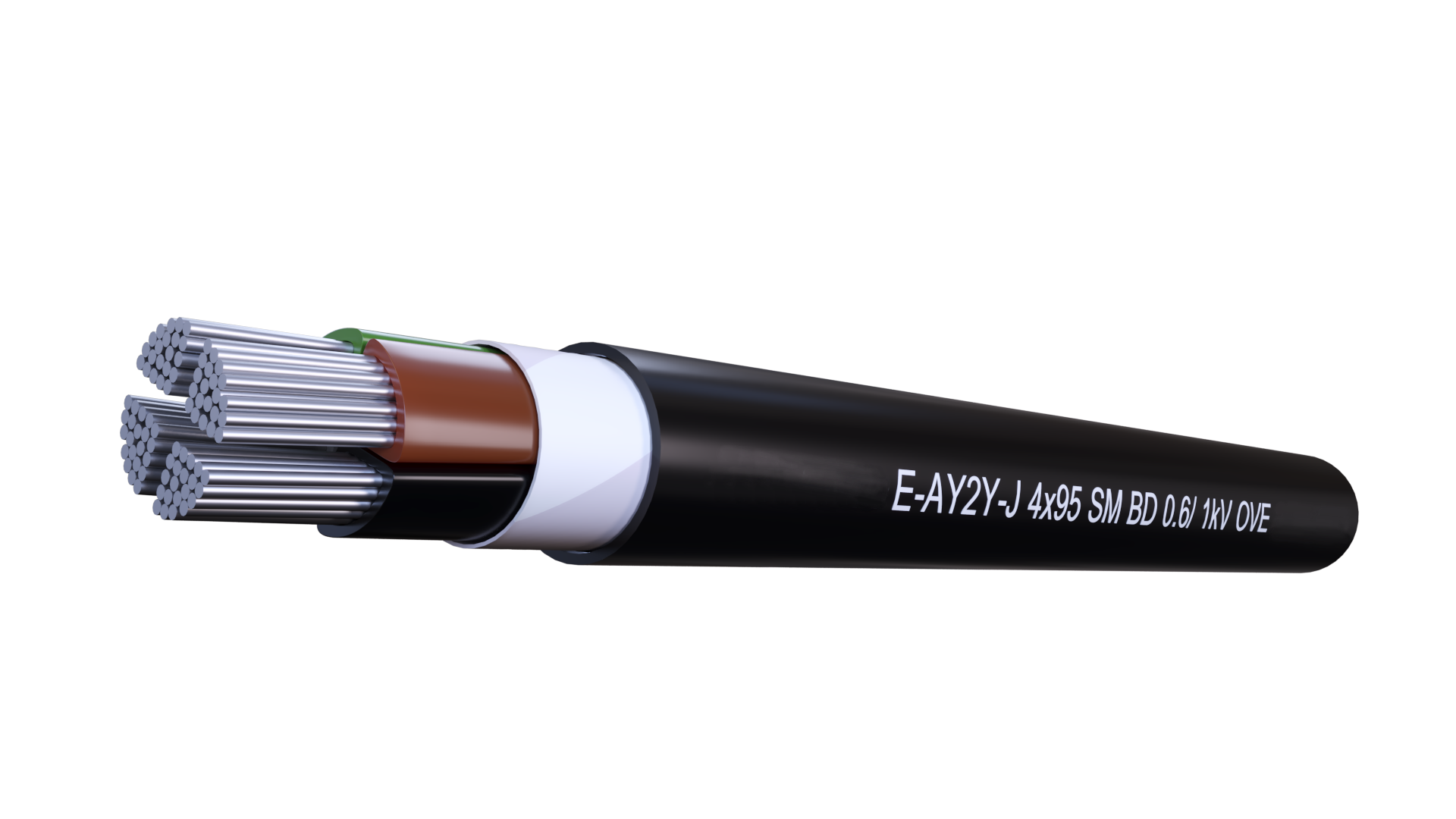

E-AY2Y-J 0,6/1kV – Underground cable cables with PVC insulation and HDPE outhersheath
Application:
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fixed installation undergroud, in interior premises, cable ducts, in open air, in water – as permited by the local building regulations – under severe mechanical stressing during installation and operation
Construction:
Conductor - Aluminium conductor class 1 or class 2
Insulation - Core insulation of Polyvinylchloride (PVC)
Filling - PVC core covering (FM) or taping (BD)
Outher sheath - Polyethylene (HDPE), Black, UV resistant
Standards:
Outher sheath hardness : 56-60 Shore D
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Short circuit time max. [sec] 5
Bending radius: x diameter 15
Temperature range:
Max. Operating temperature : +70 °C
Minimal temperature for laying and manipulation : -5 °C
Flammability:
Reaction to fire EN 60332-1-2 - Eca
