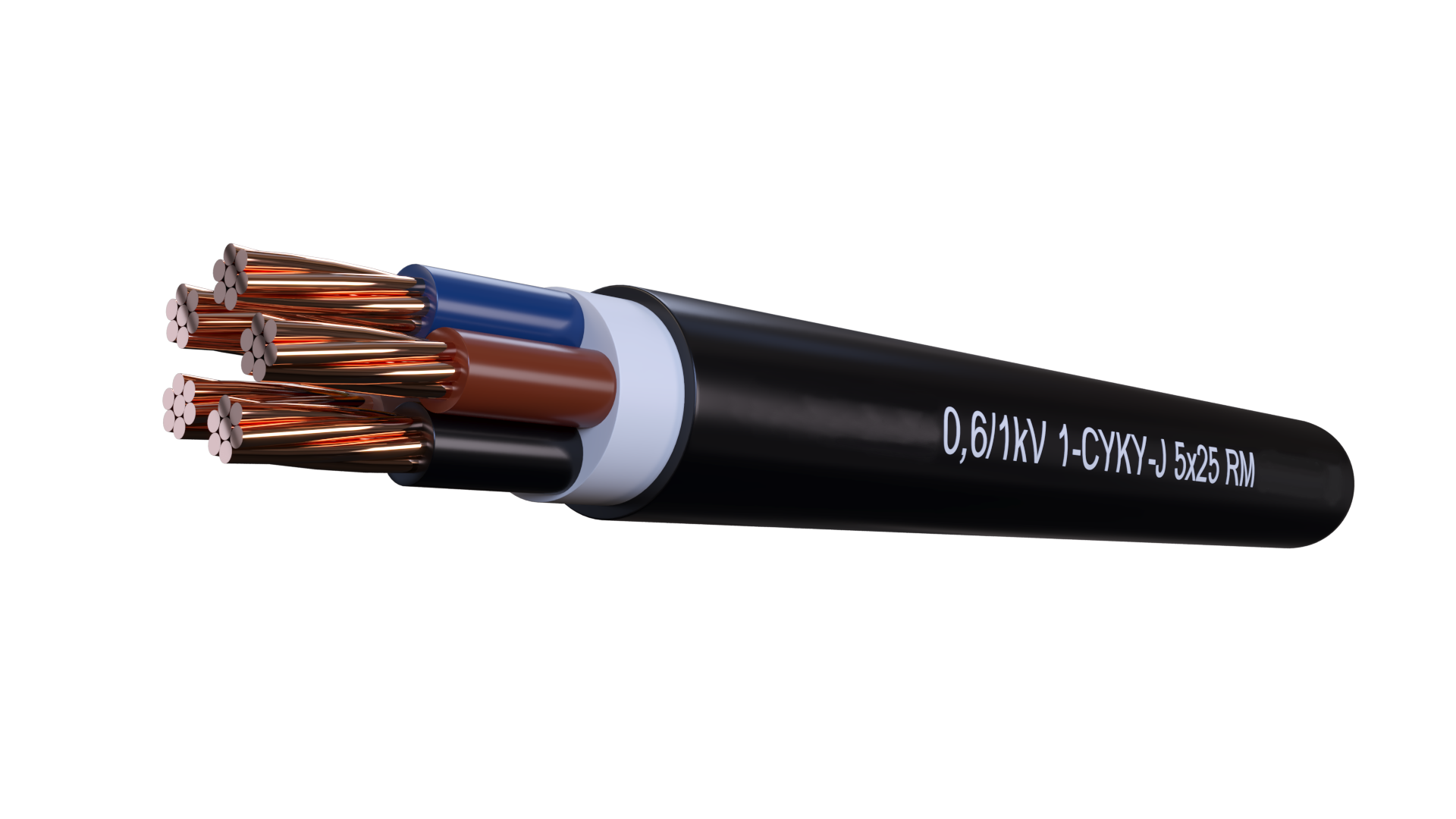

CYKY 0,6/1kV - Power cable 0,6/1 kV with Cu conductors, PVC insulated and sheathed
Application:
In earth, ducts, on support brackets, in dry and wet conditions etc, where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry
Construction:
Conductor - Copper : solid (RE) or stranded (RM/SM) bare copper
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - Core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black, UV-resistant
Standards:
TP PRAKAB 01-03;
HD 603 S1
This cable is EZU certified
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 15
Bending radius: Multi core x diameter 12
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -20°C till +70°C
Operating temperature short circuit 160°C <=300mm
Operating temperature short circuit 140°C > 300mm2
Flammability:
