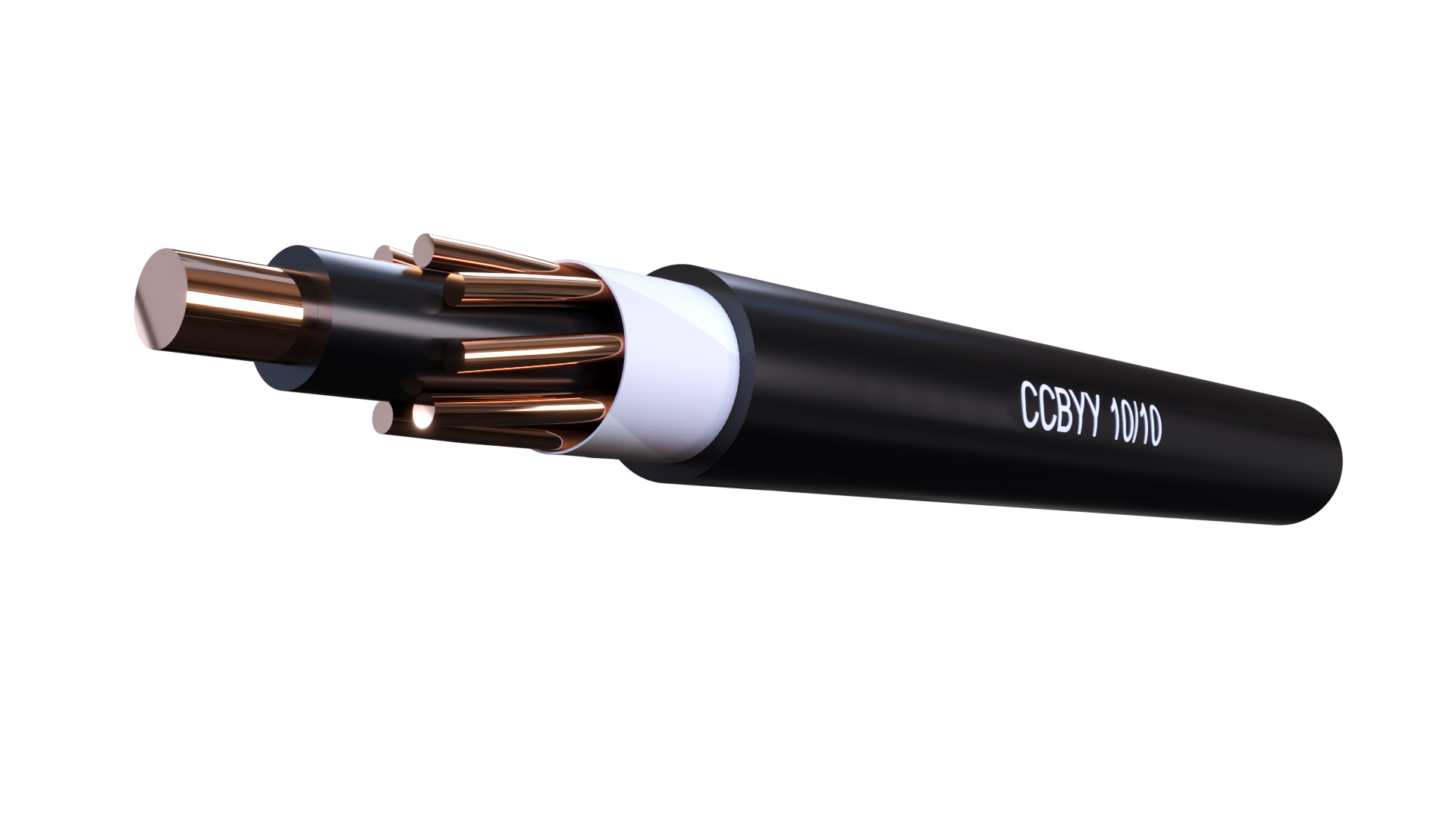

CCBYY 0,6/1kV - Electrical cable with copper concentric conductor for monophase connections
Application:
Intended for the realization of single-phase Uo / U connections: 0.6 / 1 kV
Construction:
Conductor - Copper stranded conductor
Insulation - Polyvinylchloride (PVC)
Concentric conductor from copper wires
Outer sheath - Polyvinylchloride (PVC)
Standards:
DIN EIN 60228 class 1 and 2 – Construction;
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Bending radius: Single circle x diameter 8
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Flammability:
Reaction to fire EN 50575
