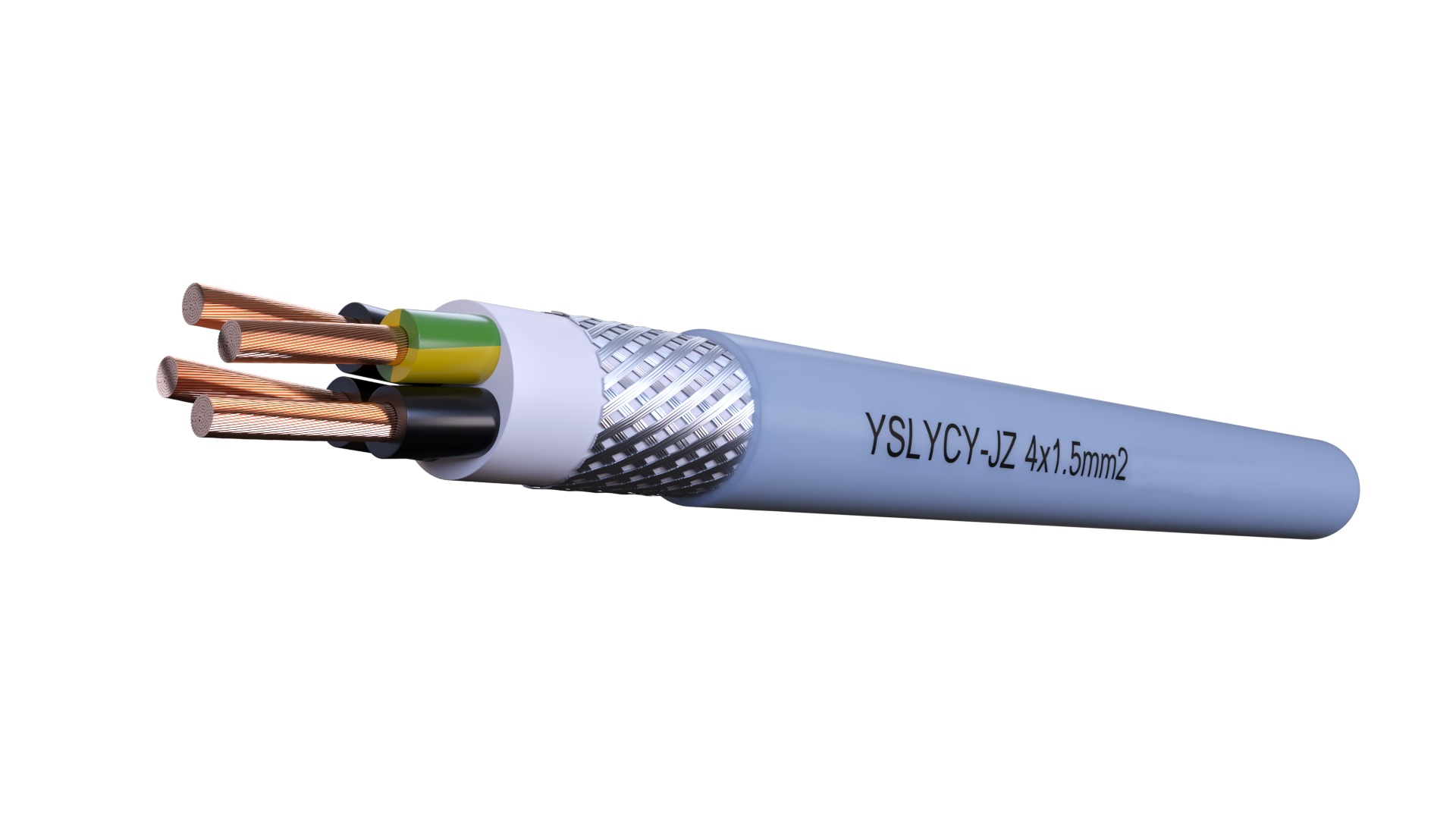

YSLYCY 300/500V - PVC Control Cable with Copper Braiding
Application:
Suitable as a signal and impulse cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies
Construction:
Conductor - Copper : Class 5 fine stranded according to EN 60228
Insulation - Polyvinylchloride (PVC)
Inner sheath - Polyvinylchloride (PVC)
Braiding - tinned round copper wires
Outer sheath - polyvinylchloride (PVC), grey, increased oil resistant
Standards:
Adapted to DIN VDE 0281
DIN EN 60228 class 5 (construction)
JZ: One core green/yellow, other cores are black with figures
OZ: Every core is black with figures
JB: Colours accordance with HD 308 standard with green yellow
OB: Colours accordance with HD 308 standard without green yellow
Electrical Performance:
Nominal Voltage: 300 / 500 Volt
Short circuit time max. [sec] 5
Bending radius one time / fixed x diameter 10
Bending radius one time / in motion x diameter 20
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Operating temperature short circuit °C 150°C
Flammability:
Reaction to fire EN 60332-1-2 - Eca
