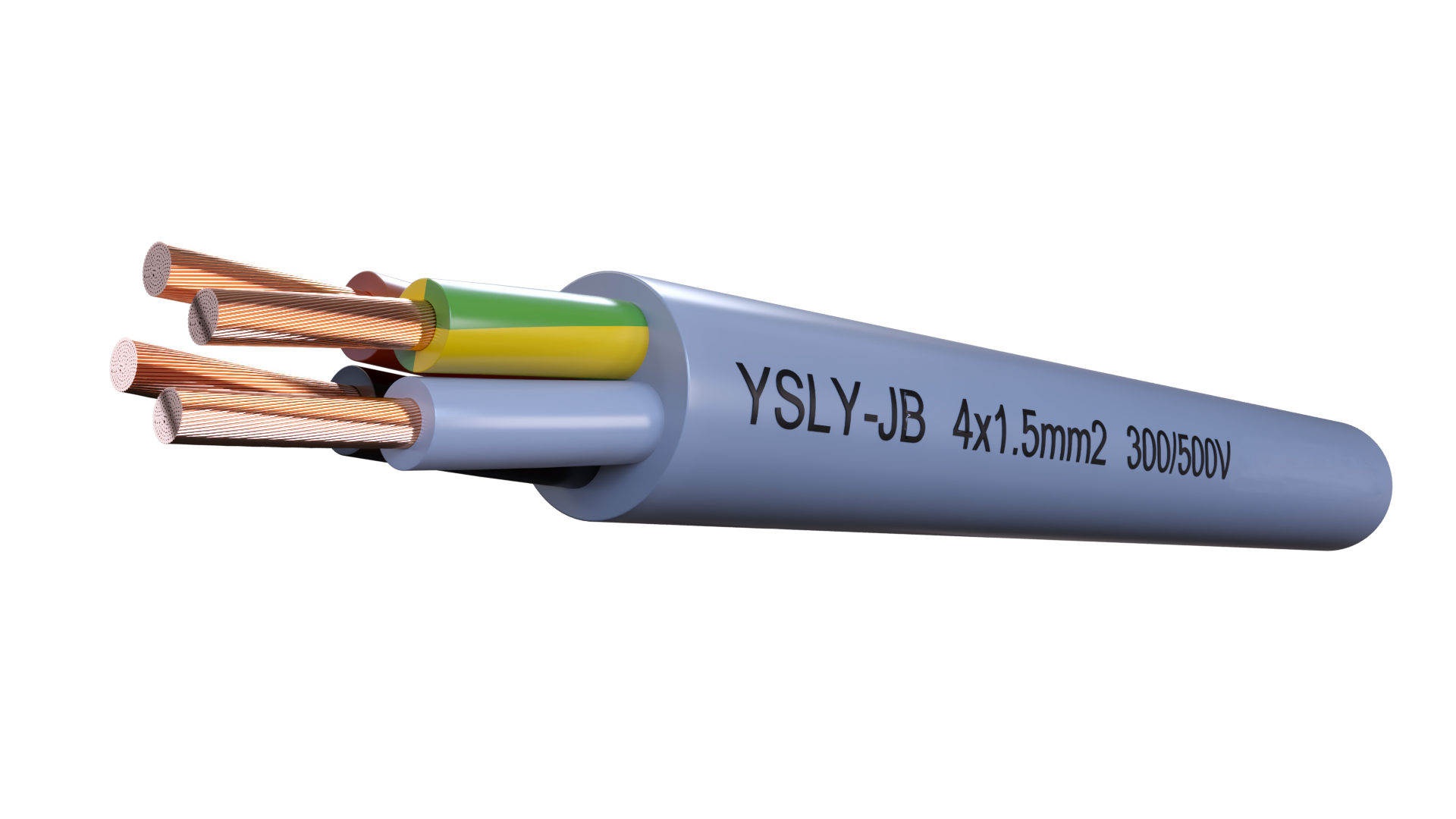

YSLY 300/500V - PVC Control Cable
Application:
In dry and damp locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and machinery
Construction:
Conductor - Copper : Class 5 fine stranded according to EN 60228
Insulation - Polyvinylchloride (PVC)
Outher sheath - Polyvinylchloride (PVC), Grey
Standards:
Adapted to DIN VDE 0812
DIN EN 60228 class 5 (construction)
JZ: One core green/yellow, other cores are black with figures
OZ: Every core is black with figures
JB: Colours accordance with HD 308 standard with green yellow
OB: Colours accordance with HD 308 standard without green yellow
Electrical Performance:
Nominal Voltage: 300 / 500 Volt
Short circuit time max. [sec] 5
Bending radius one time / fixed x diameter 6
Bending radius one time / in motion x diameter 15
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Operating temperature short circuit °C 150°C
Flammability:
Reaction to fire EN 60332-1-2 - Eca
