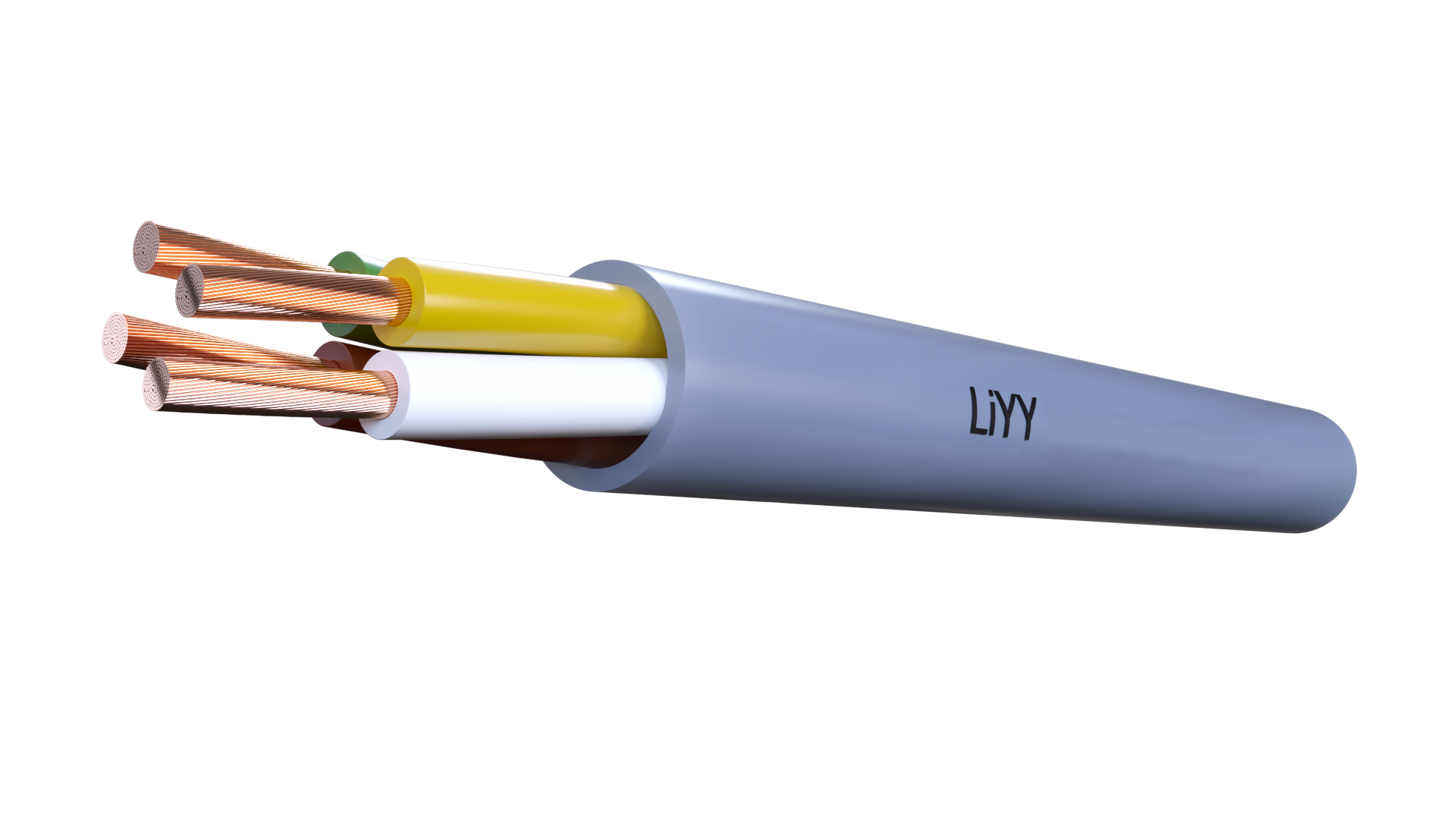

LiYY - Electronic Control Cable
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected
Construction:
Conductor - Fine-stranded bare copper
Insulation - Core insulation of polyvinylchloride (PVC)
Outer sheath - Polyvinylchloride (PVC), grey
Standards:
Adapted to DIN VDE 0812
DIN EN 60228 class 5 (construction)
DIN 47100 or factory standard
Electrical Performance:
Nominal Voltage: Peak [V] 500Volt
Bending radius in motion x diameter 10
Insulation resistance min [MOhm/km] 100
Temperature range:
In motion °C -5°C till +50°C
Fixed °C -40°C till +80°C
Flammability:
Reaction to fire EN 60332-1-2 - Eca
