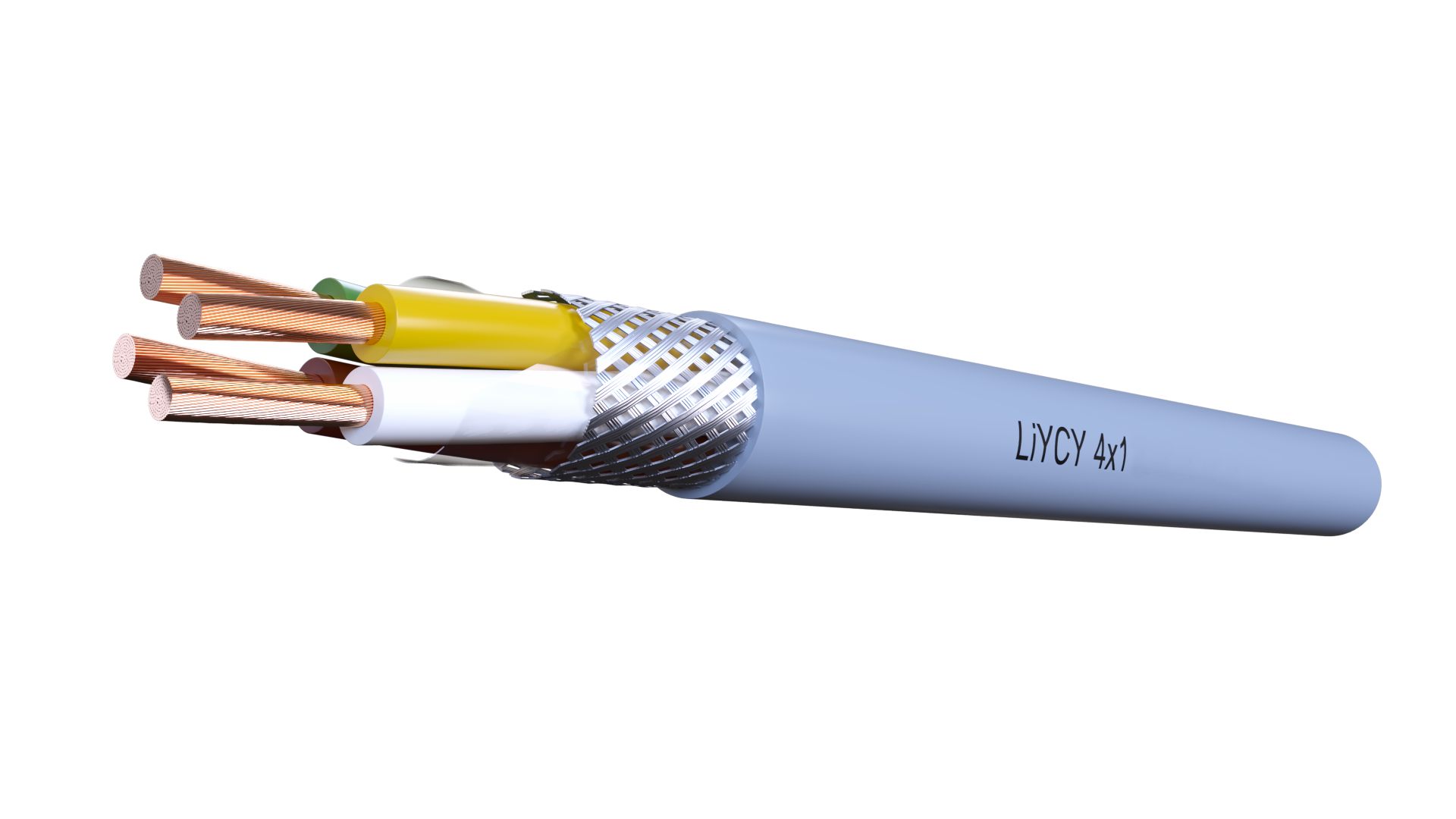

LiYCY - Electronic Control Cable with Tinner Copper
Application:
To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology
Construction:
Conductor - Fine-stranded bare copper
Insulation - Core insulation of polyvinylchloride (PVC)
Braid of tinned copper wires
Outer sheath of polyvinylchloride (PVC), grey
Standards:
Adapted to DIN VDE 0812
DIN EN 60228 class 5 (construction)
DIN 47100 or factory standard
Electrical Performance:
Nominal Voltage: Peak [V] 500Volt
Bending radius in motion x diameter 10
Insulation resistance min [MOhm/km] 100
Temperature range:
In motion °C -5°C till +50°C
Fixed °C -40°C till +80°C
Flammability:
Reaction to fire EN 60332-1-2 - Eca
