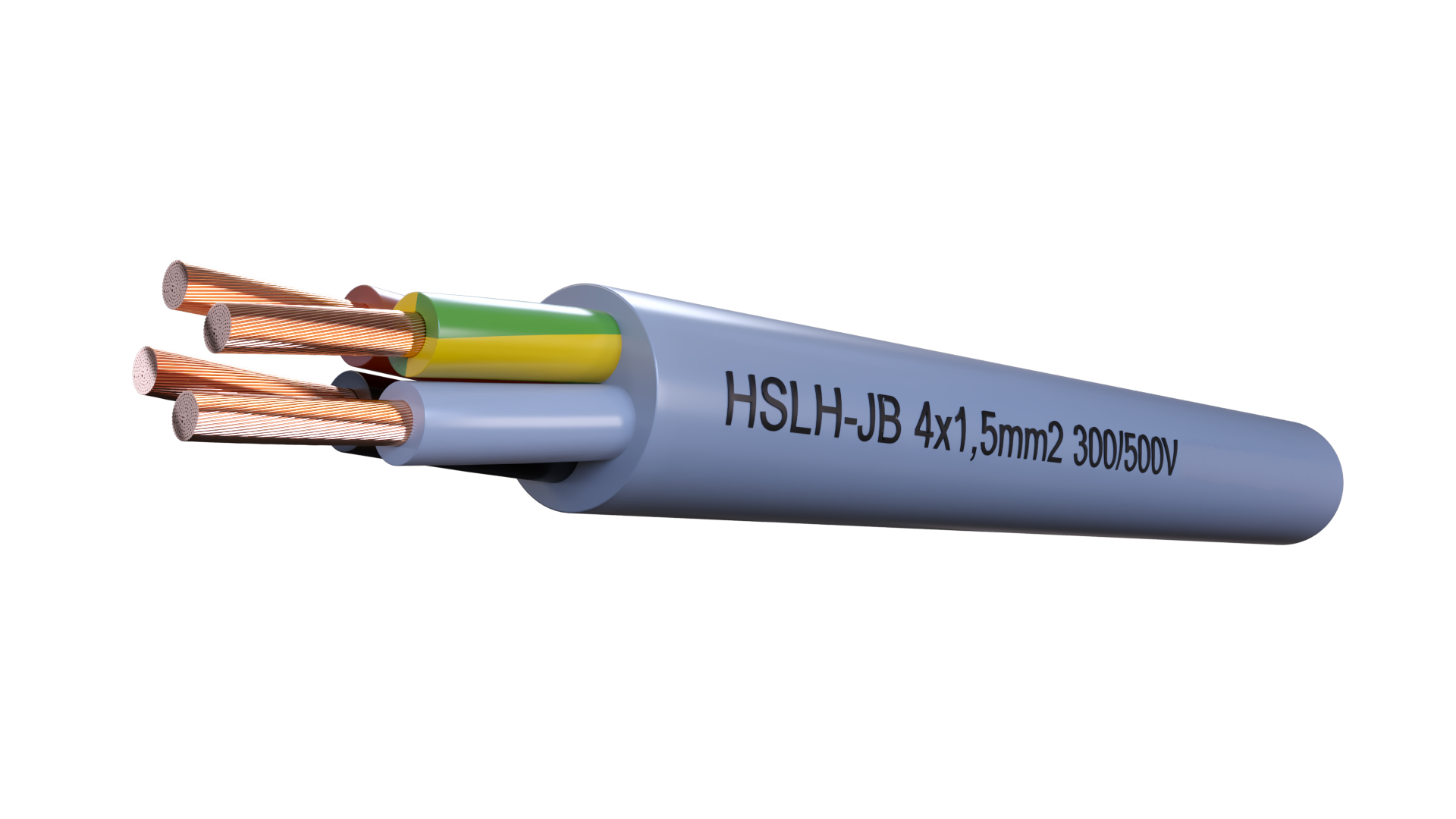

HSLH 300/500V - Halogen-Free Control Cable with Improved Fire Behaviour
Application:
For installations in dry, humid and wet locations, but not outdoors. These cables are used for fix or for flexible applications - but not with high tensile load or for forced bending. Halogen free cables, applied when higher safety in case of fire is required. The cables are flame retardant, their smoke emission in fire is low and released gases are not corrosive
Construction:
Conductor - Copper : Class 5 fine stranded according to EN 60228
Insulation - Halogen-free Cross-linkable polyethylene ( XLPE )
Filling - Halogen free flame retardand compound (HFFR), Grey
Outher sheath - Polyvinylchloride (PVC), grey or special colours
Standards:
DIN VDE 0250-204
DIN EN 60754-2
DIN EN 61034-2
JZ: One core green/yellow, other cores are black with figures
OZ: Every core is black with figures
JB: Colours accordance with HD 308 standard with green yellow
OB: Colours accordance with HD 308 standard without green yellow
Electrical Performance:
Nominal Voltage: 300/ 500 Volt
Short circuit time max. [sec] 5
Bending radius in motion x diameter 15
Temperature range:
In motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Operating temperature short circuit °C 150°C
Flammability:
Reaction to fire – EN 50575 - Dca
