Application:

Only for fixed installations in dry, humid and wet locations. Not suitable for laying directly open-air or in concrete

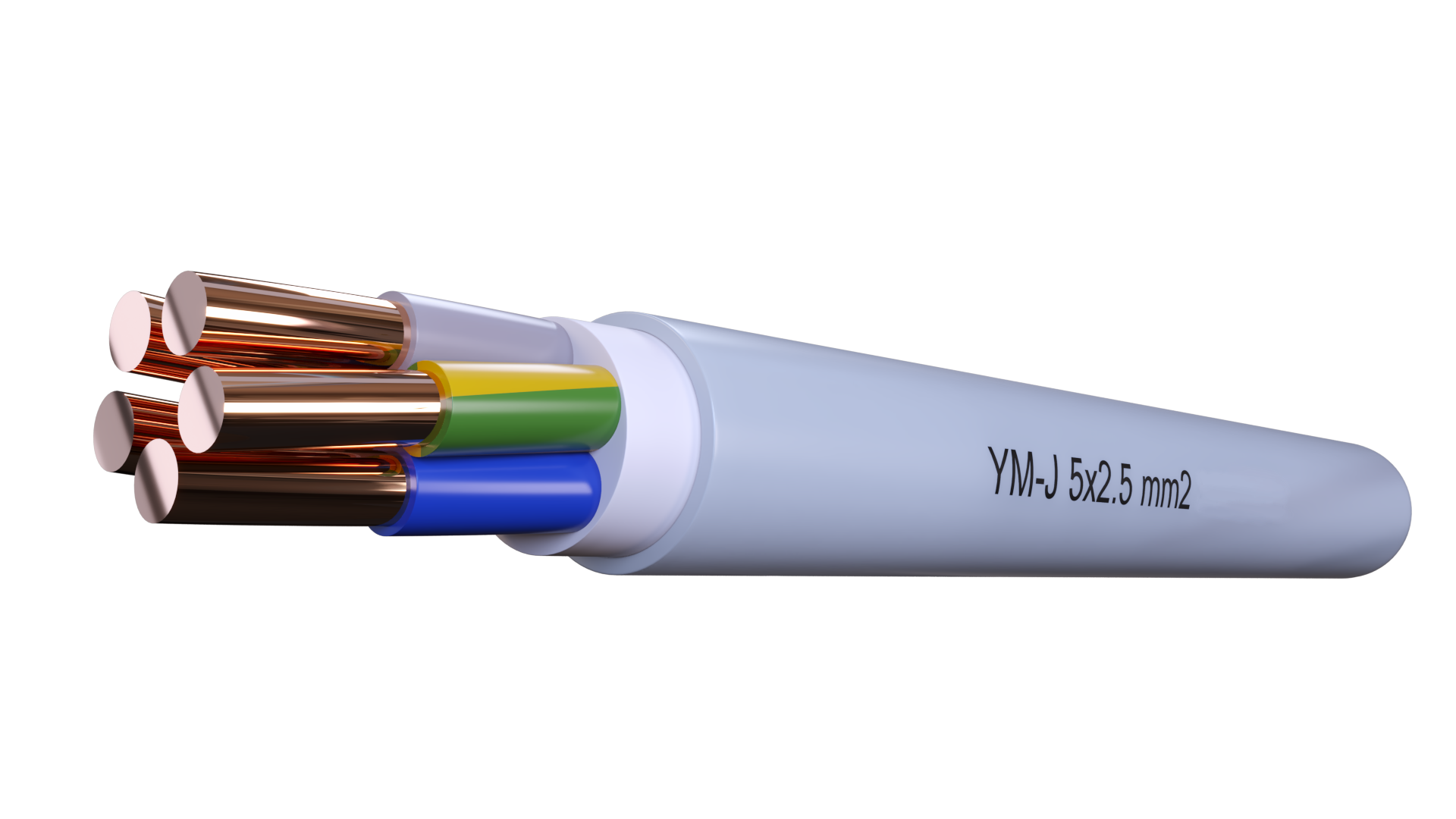

Construction:

Conductor - Copper : solid (RE) or stranded (RM)

Insulation - Core insulation of polyvinylchloride (PVC)

Filling - EPDM

Outher sheath - Polyvinylchloride (PVC), grey or special colours

Standards:

ÖVE / ÖNORM E 8242
DIN EN 60228 Cl.1(RE) and cl.2(RM) (construction)

Core Identification:

Accordance to HD 308 S2

J: One core green/yellow, other cores are colored

O: Every core is colored

One core green/yellow, other cores are colored

JZ: One core green/yellow, other cores are black with figures

OZ: every core is black with figures

Colored cores for 7 cores : core colours: green/yellow, violet, pink, orange, brown, black, blue

File Certification

Electrical Performance:

Nominal Voltage: 300/ 500 Volt

Test Voltage: [V]AC 2000

Short circuit time max. [sec] 5

Bending radius: Single circle x diameter 4

Temperature range:

In motion °C +5°C till +70°C

Fixed °C -40°C till +70°C

Operating temperature short circuit °C 160°C

Flammability:

Reaction to fire - EN 60332-1-2 - Eca
