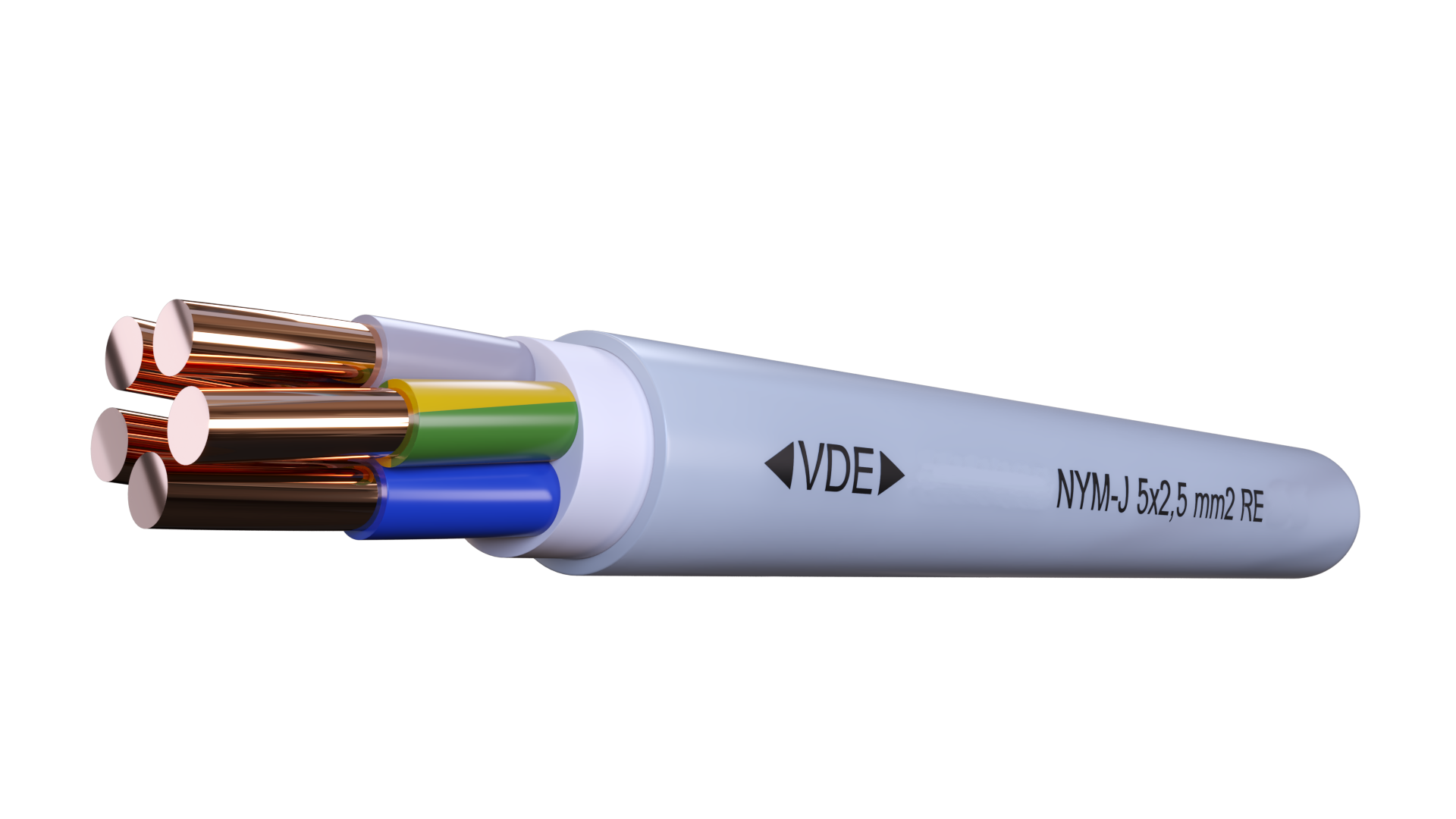

Construction Products - NYM-J (AT-N05VV-U)

Application:

Only for fixed installations in dry, humid and wet locations. Not suitable for laying directly open-air or in concrete

Construction:

Conductor - Copper : solid (RE) or stranded (RM)

Insulation - Core insulation of polyvinylchloride (PVC)

Filling - Common core covering

Outher sheath - Polyvinylchloride (PVC), grey or special colours

Standards:

DIN VDE 0250-204
DIN EN 60228 Cl.1(RE) and cl.2(RM) (construction)

License:

This cable is VDE certified

Core Identification:

Accordance to HD 308 S2

J: One core green/yellow, other cores are colored

JZ: One core green/yellow, other cores are black with figures

OZ: every core is black with figures

File Certification

Electrical Performance:

Nominal Voltage: 300/ 500 Volt

Test Voltage: [V]AC 2000

Short circuit time max. [sec] 5

Bending radius: Single circle x diameter 4

Temperature range:

In motion °C +5°C till +70°C

Fixed °C -40°C till +70°C

Operating temperature short circuit °C 160°C

Flammability:

Reaction to fire - EN 60332-1-2 - Eca
