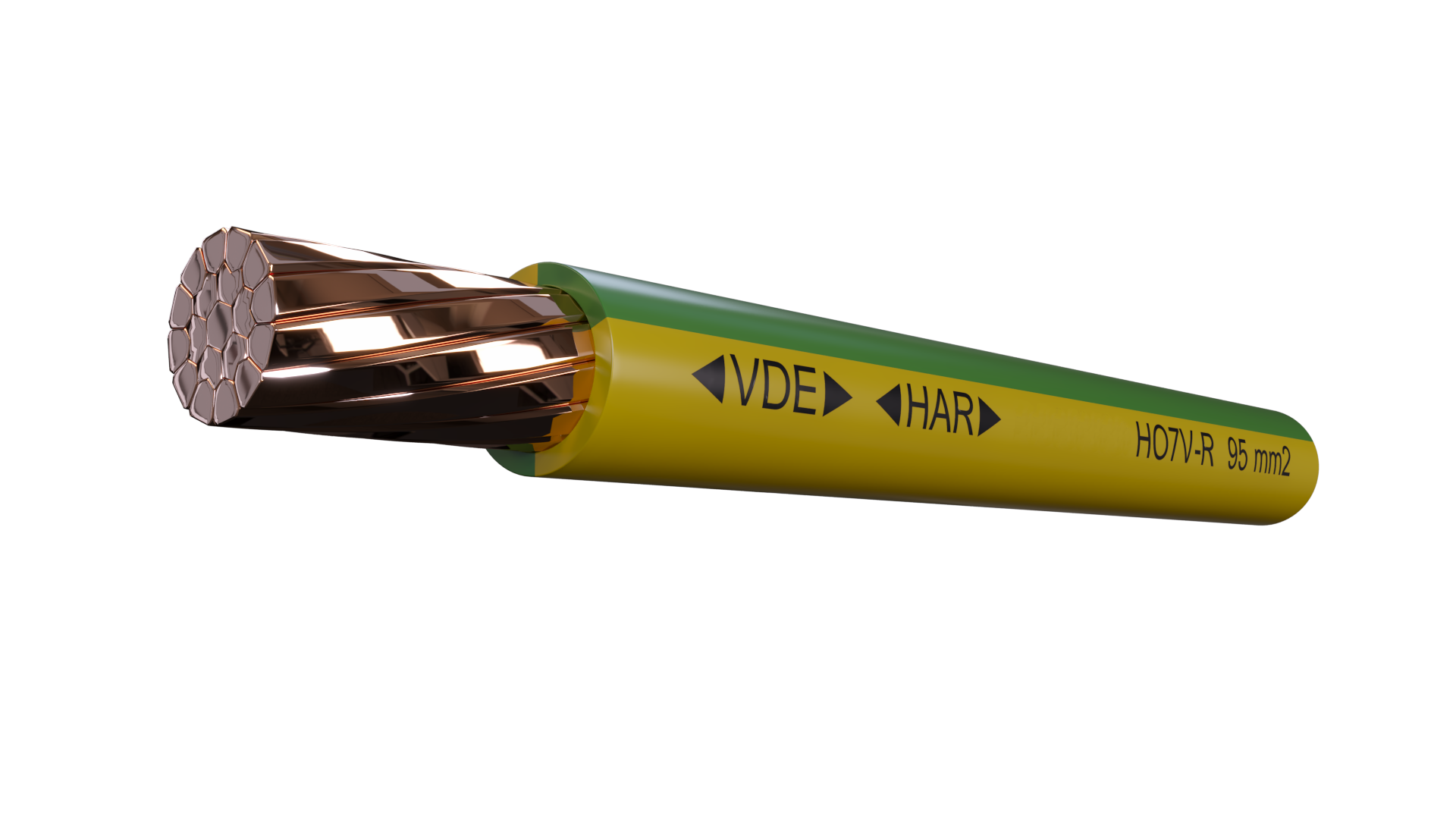

H07V-R 450/750V - PVC Insulated Single Core Wire
Application:
For indoor fixed installations in dry locations, in switchboards and distributors, installed in surface mounted or embedded conduits, or on suitably objects
Construction:
Conductor - Stranded bare copper, compacted
Insulation - Polyvinylchloride (PVC)
Standards:
EN 50525-2-31
DIN EN 60228 Class 2 (construction)
License:
This cable is VDE HAR certified
Electrical performance:
Nominal Voltage: 450/750 Volt
Short circuit time: max. [sec] 5
Bending radius: min. x diameter 4
Temperature range:
Operating temperature - short circuit 160°C
Flammability:
Accordance to EN 60332-1-2 - Eca
