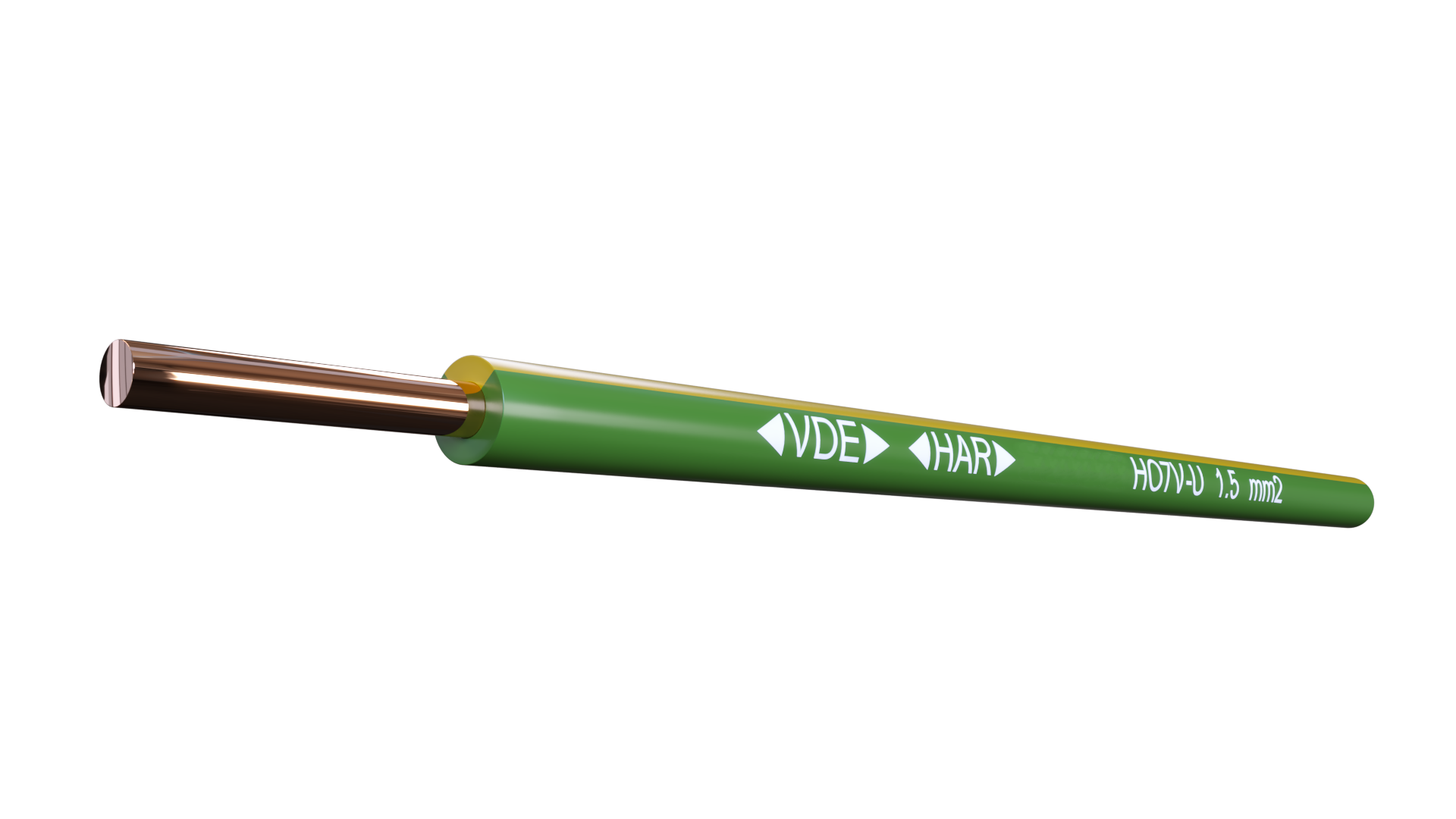

H05V-U 300/500V & H07V-U 450/750V - PVC Insulated Single Core Wire
Application:
H05V-U: For protected fixed installations inside appliances and in or on lighting fittings. Further for installations in pipes on and under plaster, however, only for signal circuit and control circuit
H07V-U: For indoor fixed installations in dry locations, in switchboards and distributors, installed in surface mounted or embedded conduits, or on suitably objects
Construction:
Conductor - Solid bare copper
Insulation - Polyvinylchloride (PVC)
Standards:
EN 50525-3-31
DIN EN 60228 Class 5 (construction)
This cable is VDE HAR certified
Electrical Performance:
Nominal voltage: H05V-U Uo/U [V] 300/500 Volt
Nominal voltage: H07V-U Uo/U [V] 450/750 Volt
Test voltage: H05V-U [V]AC 2000
Test voltage: H07V-U [V]AC 2500
Short circuit time: max. [sec] 5
Bending radius: min. x diameter 4
Temperature range:
in motion °C +5°C till +70°C
Operating temperature short circuit °C 160°C
Flammability:
Reaction to fire - EN 60332-1-2 - Eca
