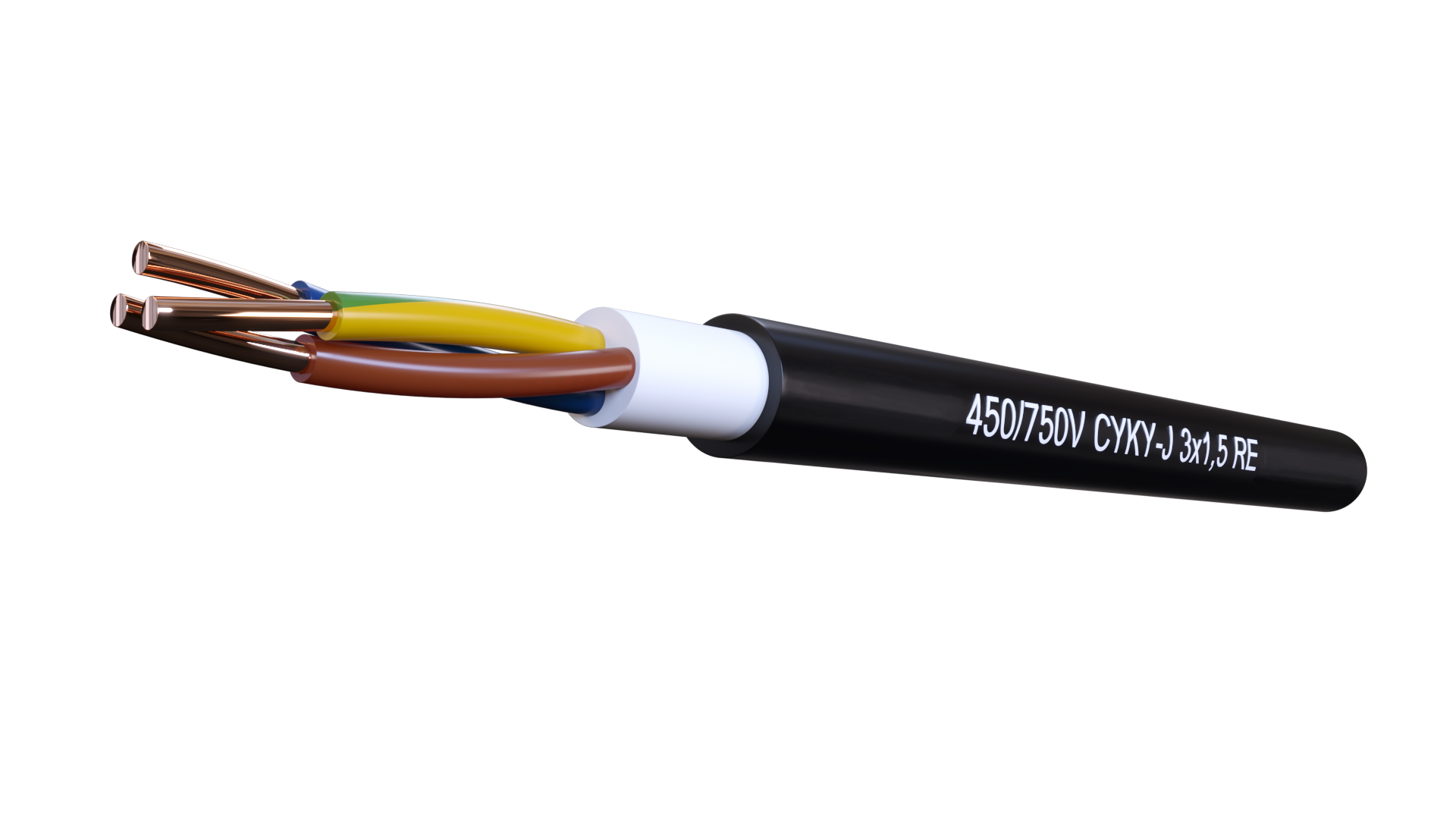

CYKY 450/750V - PVC Insulated Current Cable
Application:
For installation in, on or under plaster, in dry, damp or wet rooms as well as in walls and concrete. Also suitable for installation outdoors if protected against direct sun irradiation
Construction:
Conductor - Copper : solid (RE) or stranded (RM)
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - Core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black
Standards:
CSN 34 7411;
DIN EIN 60228 class 1 and 2 - Construction
This cable is EZU certified
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures
Electrical Performance:
Nominal Voltage: 450/750 Volt
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 6
Bending radius: Multi core x diameter 12
Temperature range:
Flammability:
Reaction to fire - EN 60332-1-2 - Eca
